Appendix C: Terminal Conversion Charts for V-type and H-type Devices

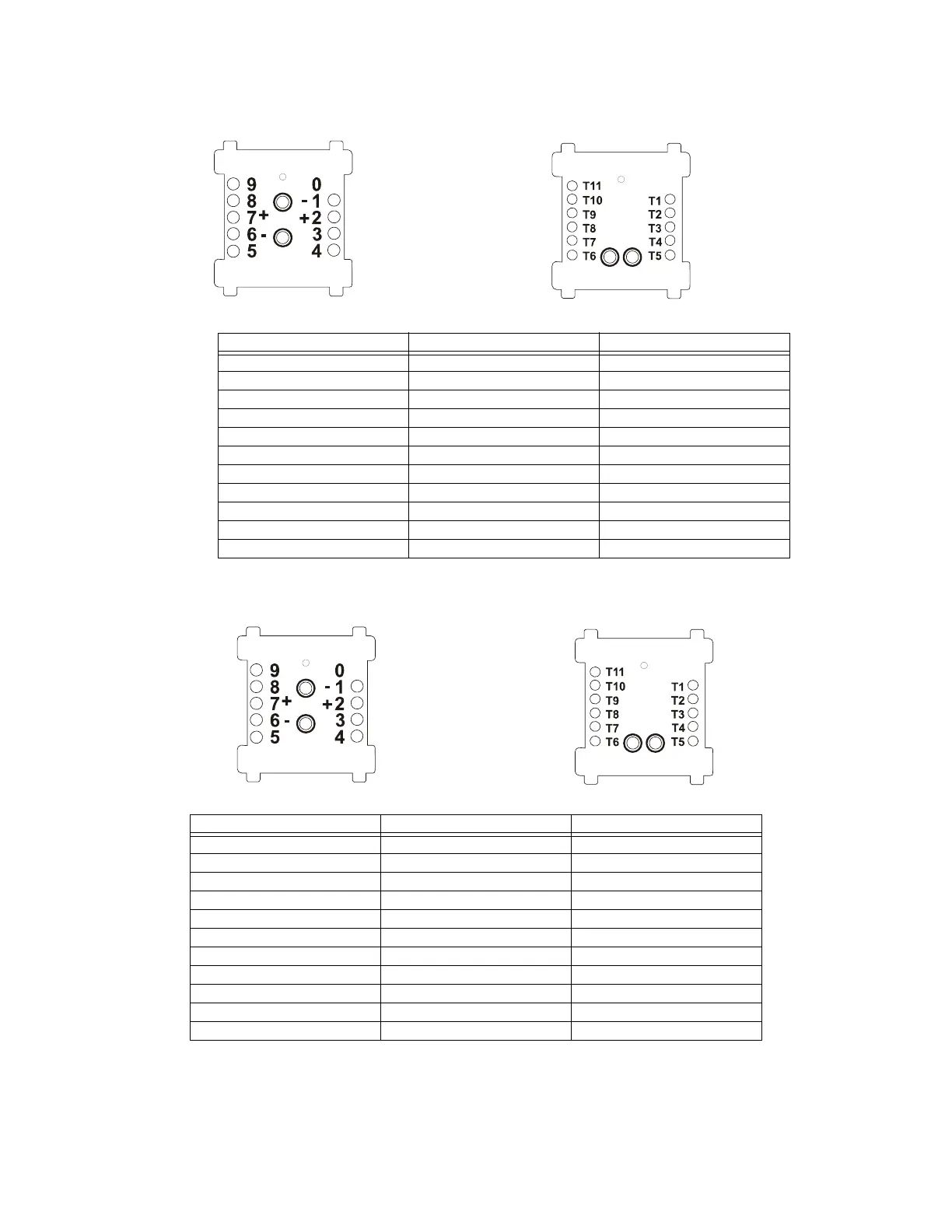

C.1 FRM-1
C.2 FCM-1 and FZM-1
Type V
Type H
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
SLC -
SLC +
SLC -
SLC +
Common 2
Closed 2
Open 2
Common 1
Closed 1
Open 1
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3 Unused 3
4 Normally Open (1) 5
5 Normally Closed (1) 6
6 Relay Common (1) 7
7 Normally Open (2) 8
8 Normally Closed (2) 9
9 Relay Common (2) 10
N/A Unused 4
N/A Unused 11
Table C.1 FRM-1 Terminal Conversions
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3 VDC - 11
4 VDC + 10
5 Unused 5
6 Solenoid B/A - 6
7 Solenoid B/A + 7
8 Solenoid A + 8
9 Solenoid A - 9
N/A Unused 3
N/A Unused 4
Table C.2 FCM-1 and FZM-1 Terminal Conversions
VDC -
VDC +
SLC -
SLC +
SLC -
SLC +
VDC -
VDC +
Class A Supervision A-
Class A SupervisionA+
Class A/B Supervision +
Class A/B Supervision -
Class A Supervision A-
Class A Supervision A+
Class A/B Supervision +
Class A/B Supervision -
Type V
Type H
