136 6820 / 6820EVS Manual P/N LS10144-001SK-E:C 09/28/2017
information on editing the banner.

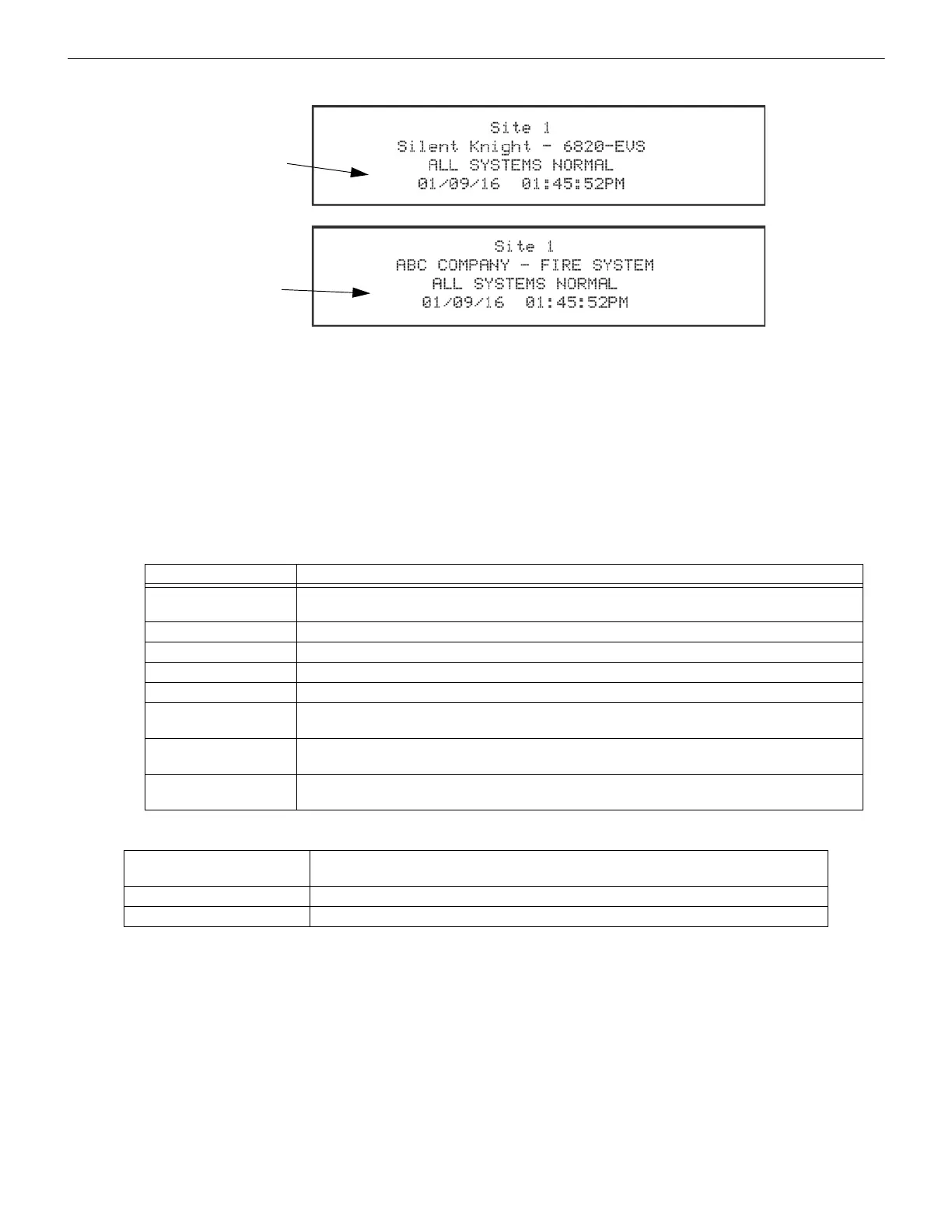

Figure 10.4 Banner Display Examples for 6820EVS
10.3 Menu System
The control panel is easy to operate from the Main Menu. To view the Main Menu press the ENTER or right arrow key on the control
panel or remote annunciator. The Main Menu will appear as shown in Section 10.3.1. Select the desired option. You will be prompted for
as access code if required.
The control panel supports up to 20 access codes. The profile for each access code (or user) can be modified through the network pro-
gramming option (see Section 6.2.5 for access code programming).
10.3.1 Main Menu Overview
The chart below is a brief overview of the Main Menu. These options are described in greater detail throughout this section of the man-
ual.
10.3.2 Using the Menus
10.4 Basic Operation
10.4.1 Setting Time and Date
1. Select 4 for Set Date & Time.
2. Make changes in the fields on the screen. Use right arrow to move through the fields. Use the up or down arrow key to select
options in the fields.
3. When the date and time are correct, press ENTER.
10.4.2 Disable / Enable a Point
1. Select 2 for Point Functions.
2. Select 1 for Disable/Enable Point.
Text of
Internal Banner
Custom Banner
Example
Main Menu Options Description
1- System Tests Access to Fire Drill, Indicator Test, Walk Tests, Communicator Test, Clear History Buffer, Manual
AlarmNet Registration and Manual Communicator Reset.
2- Point Functions Enable/disable points, Point Status, Set SLC Address, Device Locator, and I/O Point Control.
3- Event History Display event history on the LCD. See Section 10.4.4 for more information.
4- Set Time & Date Set time and date for the system.
5- Network Diagnostics Ping Panel and Data Network Status
6- Network Programming Access Learn Network, Edit Network Names, Edit Panel ID, Computer Access, Access Codes,
Communicator Options, Voice Options, Sync Network Options.
7- Panel Programming Brings up a set of menus for programming the panel. These options are described in detail in
Section 9.
8- System Information Menus to view information about the panel such as model, ID, serial number, revision, send or receive
firmware updates and feature registration activation.
To move through the menus: Use the up or down arrows to move through the options in a menu. Use the left arrow to
move to a previous menu.
To select an option: Enter the number of the option, OR press ENTER if the option has the = symbol next to it.
Exit Menu Left arrow
