50 6820 / 6820EVS Manual P/N LS10144-001SK-E:C 09/28/2017
4.11 5880 LED I/O Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with most customized floor
plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller. The 5880 also has eight inputs for monitoring
dry contacts. When used with the 6820EVS the 5880 inputs can be programmed to replicate the eight EVS buttons located on the front of
the voice control module. (See section 9.5 for programming options). Up to 8 5880s can be added to the 6820/EVS system.
The following sub-sections describe hardware installation. Refer to Section 9 for programming information.
4.11.1 5880 Board Layout
Figure 4.35 shows the locations of screw terminals for connection to the panel and contact monitor wiring; pin connectors for connecting
LEDs; and the DIP switch for selecting an SBUS ID number for the 5880.

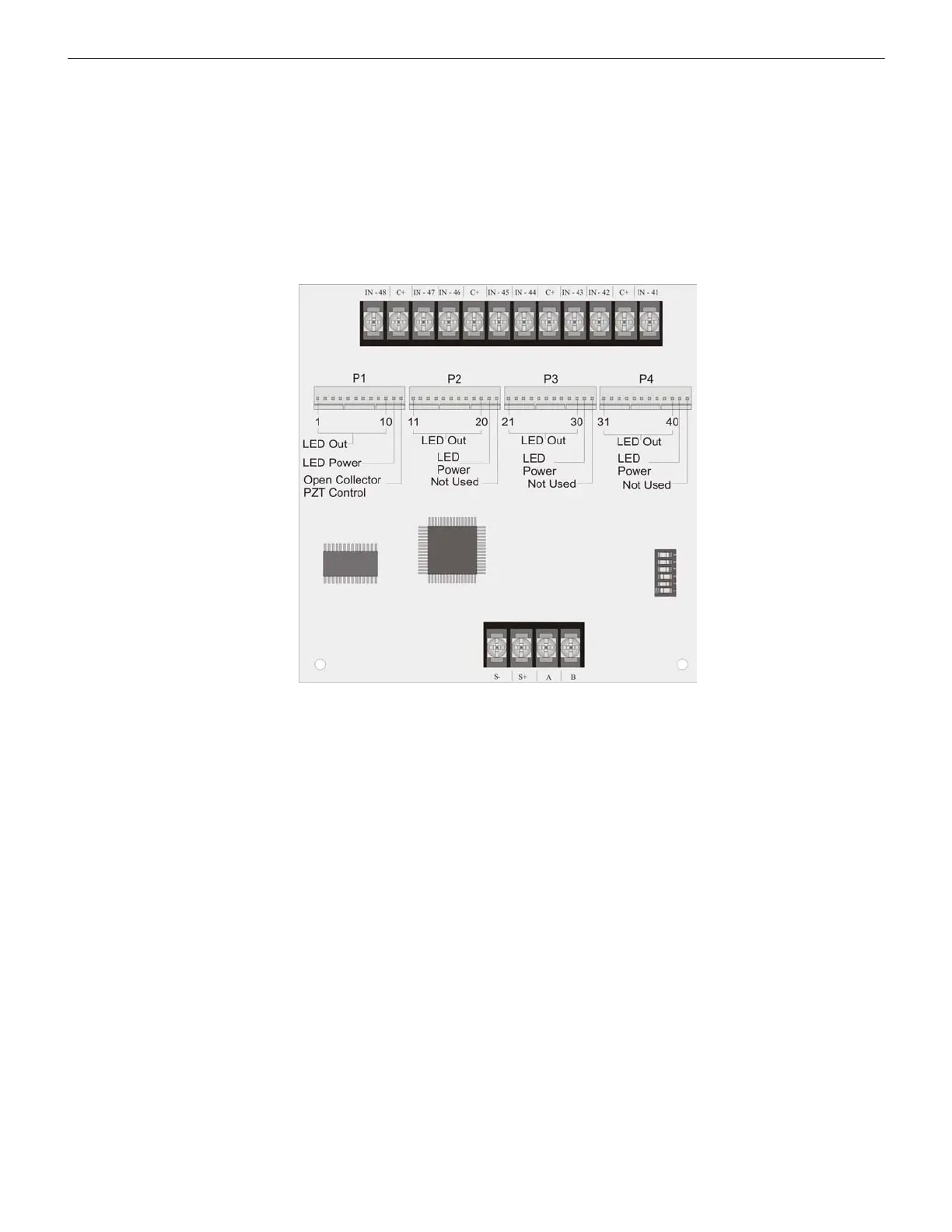

Figure 4.35 5880 Board Layout
SBUS Connection
SBUS Address
DIPs
Dry Contact Inputs
To Next Page
