116 Voyager XP User Guide
When Check Character is set to Validate, but Don’t Transmit, the unit will only
read Codabar barcodes printed with a check character, but will not transmit the
check character with the scanned data.
Codabar Concatenation
Codabar supports symbol concatenation. When you enable concatenation, the
scanner looks for a Codabar symbol having a “D” start character, adjacent to a
symbol having a “D” stop character. In this case the two messages are concate-
nated into one with the “D” characters omitted.
Select Require to prevent the scanner from decoding a single “D” Codabar symbol
without its companion. This selection has no effect on Codabar symbols without
Stop/Start D characters.

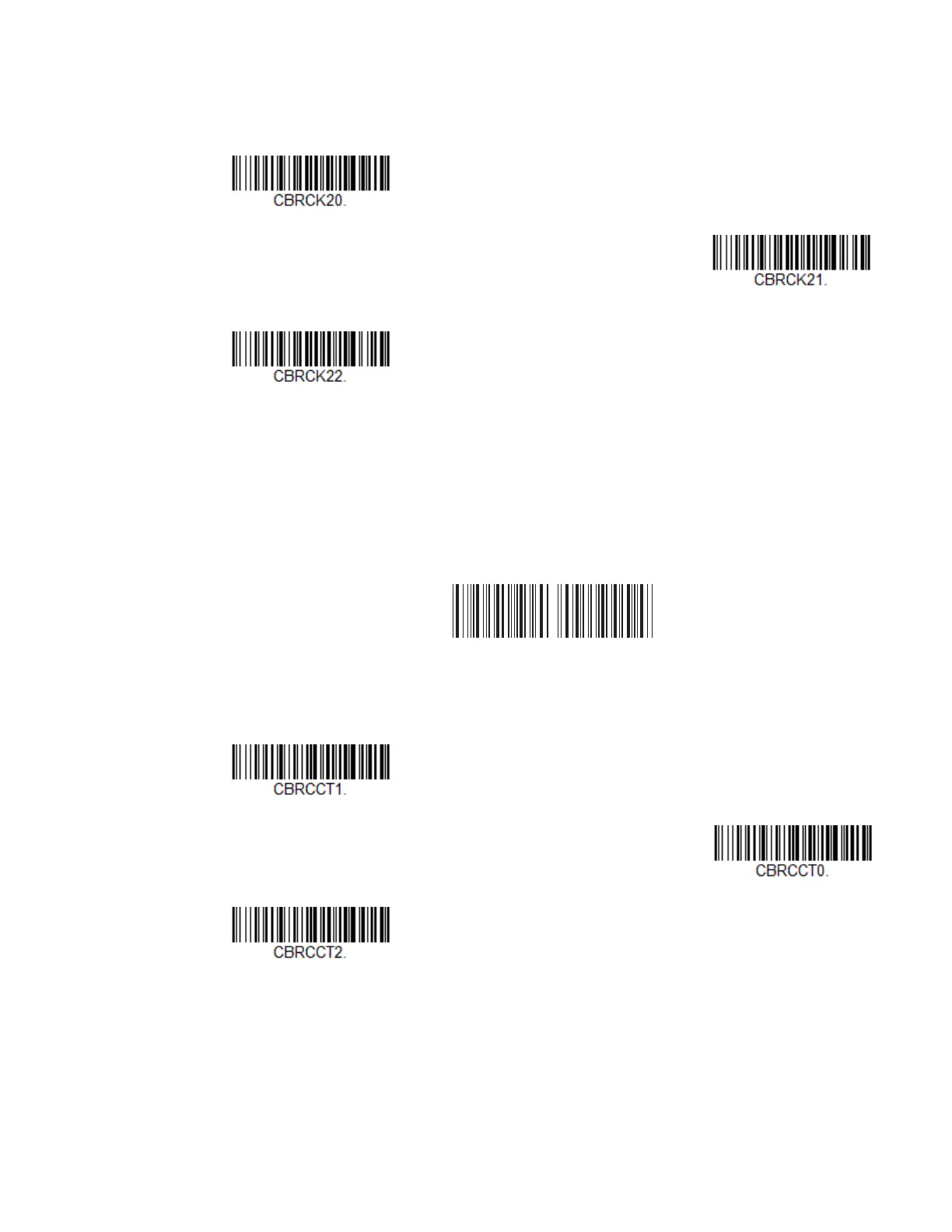

* No Check Character
Validate Modulo 16, but
Don’t Transmit
Validate Modulo 16
and Transmit
A1234D D5678A
On
* Off
Require

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
