Note: The power supply must be ordered separately, if needed.
1. If you are connecting a CCB01-010BT-V1N Base, make sure the cables are
secured in the wireways in the bottom of the cordless base and the base sits flat
on a horizontal surface.
2. Plug the serial connector into the serial port on your computer. Tighten the two
screws to secure the connector to the port.
3. Once the scanner or cordless base has been fully connected, power up the
computer.
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.
Connect with RS485
A scanner or cordless base can be connected for an IBM POS terminal interface.
CCB01-010BT-V1N Base

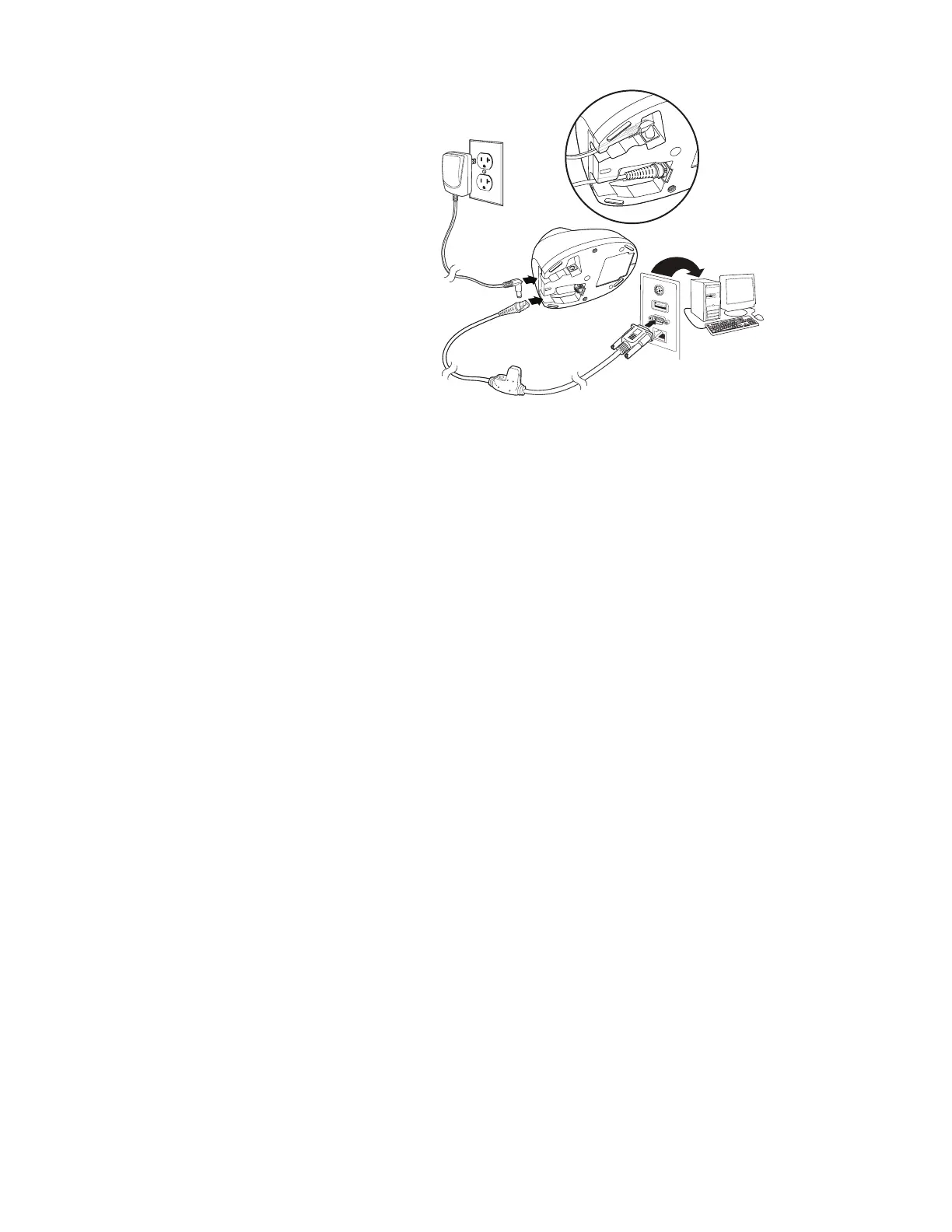

RS232 Serial Port Connection:

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
