Honeywell Voyager 1472g User Manual

58 Voyager XP User Guide

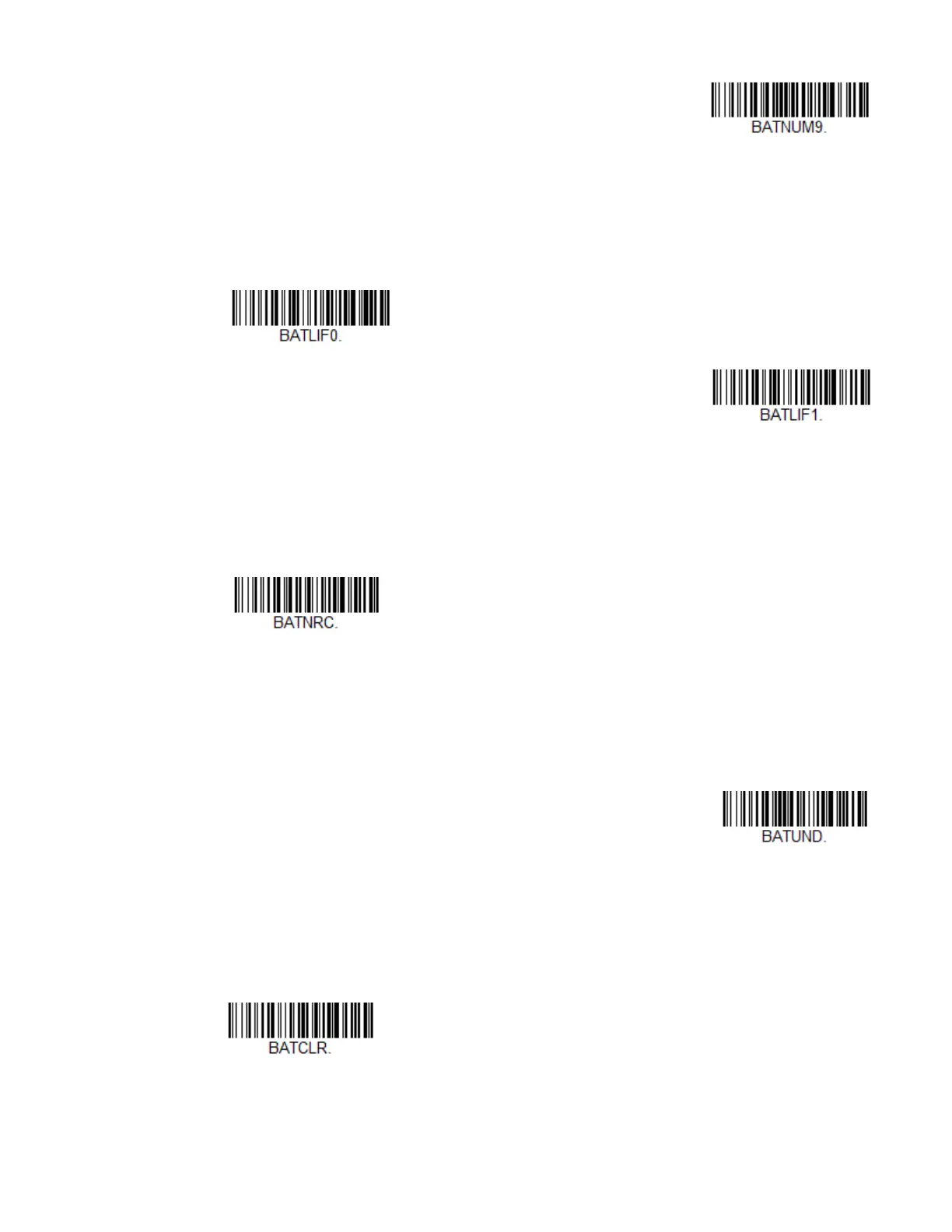

Batch Mode Output Order
When batch data is transmitted, select whether you want that data sent as FIFO
(first-in first-out), or LIFO (last-in first-out). Default = Batch Mode FIFO.
Total Records
If you wish to output the total number of barcodes scanned when in Batch Mode,
scan Total Records.
Delete Last Code
If you want to delete the last barcode scanned when in Batch Mode, scan Delete
Last Code.
Clear All Codes
If you want to clear the scanner’s buffer of all data accumulated in Batch Mode,
scan Clear All Codes.
9
* Batch Mode FIFO
Batch Mode LIFO
Total Records
Delete Last Code
Clear All Codes

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
