Honeywell Voyager 1472g User Manual

Voyager XP User Guide 59

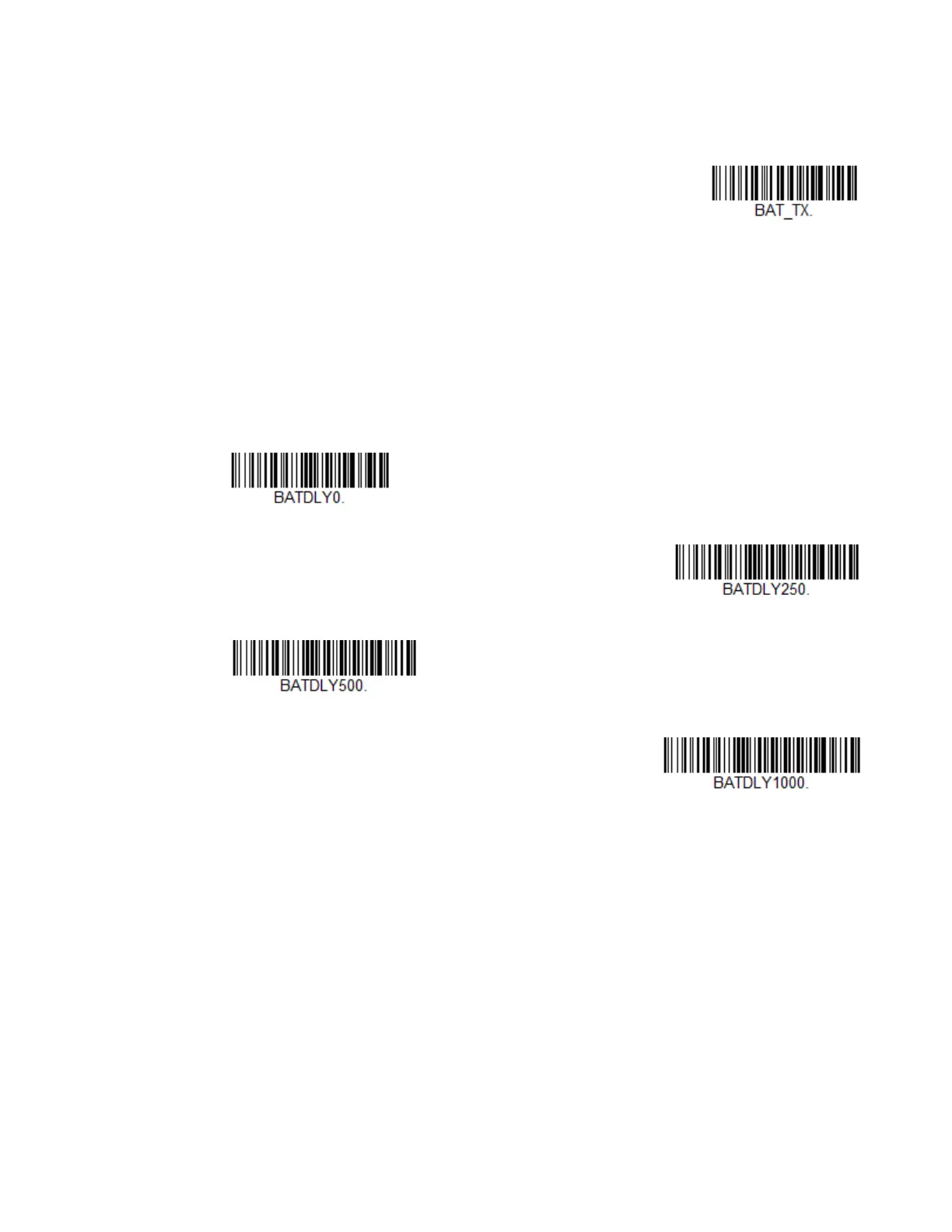

Transmit Records to Host
If you are operating in Inventory Batch Mode Inventory Batch Mode, you must scan
the following barcode to transmit all the stored data to the host system.
Batch Mode Transmit Delay
Sometimes when accumulated scans are sent to the host system, the transmission
of those scans is too fast for the application to process. To program a transmit
delay between accumulated scans, scan one of the following delays. Default = Off.
Note: In most cases, a short (250 ms (milliseconds)) delay is ideal, however, longer delays
may be programmed. Contact Customer Support for additional information.
Multiple Scanner Operation
Note: Multiple Scanner Operation Mode allows you to link up to 3 scanners to one base or
Access Point (if supported). You cannot join an 4th scanner until you unlink one of the
3 scanners or take a scanner out of range.
Transmit Inventory Records
* Batch Mode Transmit Delay Off
(No Delay)
Batch Mode Transmit Delay Short
(250 ms)
Batch Mode Transmit Delay Medium
(500 ms)
Batch Mode Transmit Delay Long
(1000 ms)

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
