Honeywell Voyager 1472g User Manual

Voyager XP User Guide 55
Batch Mode Beep
When scanning in Inventory Batch Mode, the scanner beeps every time a barcode
is scanned. When Batch Mode Beep is On, you will also hear a click when each bar-
code is sent to the host. If you do not want to hear these clicks, scan Batch Mode
Beep Off. Default = Batch Mode Beep On.
Batch Mode Storage
When a scanner is storing data during a Batch Mode process, you can select
whether the data is stored in Flash memory or in RAM.
Flash Storage: The scanner writes any untransmitted data to flash memory prior to
powering down. The data will still be there when the scanner powers back up. How-
ever, the scanner will power down, even with untransmitted data, if it reaches a
power down timeout or if the battery power is very low.
RAM Storage: The scanner will not power down while it contains data that has not
been transmitted to the base or Access Point, even if it reaches a power down time-
out. However, if the scanner runs out of battery power, it will power down and the
data will be lost.
Default = Flash Storage.

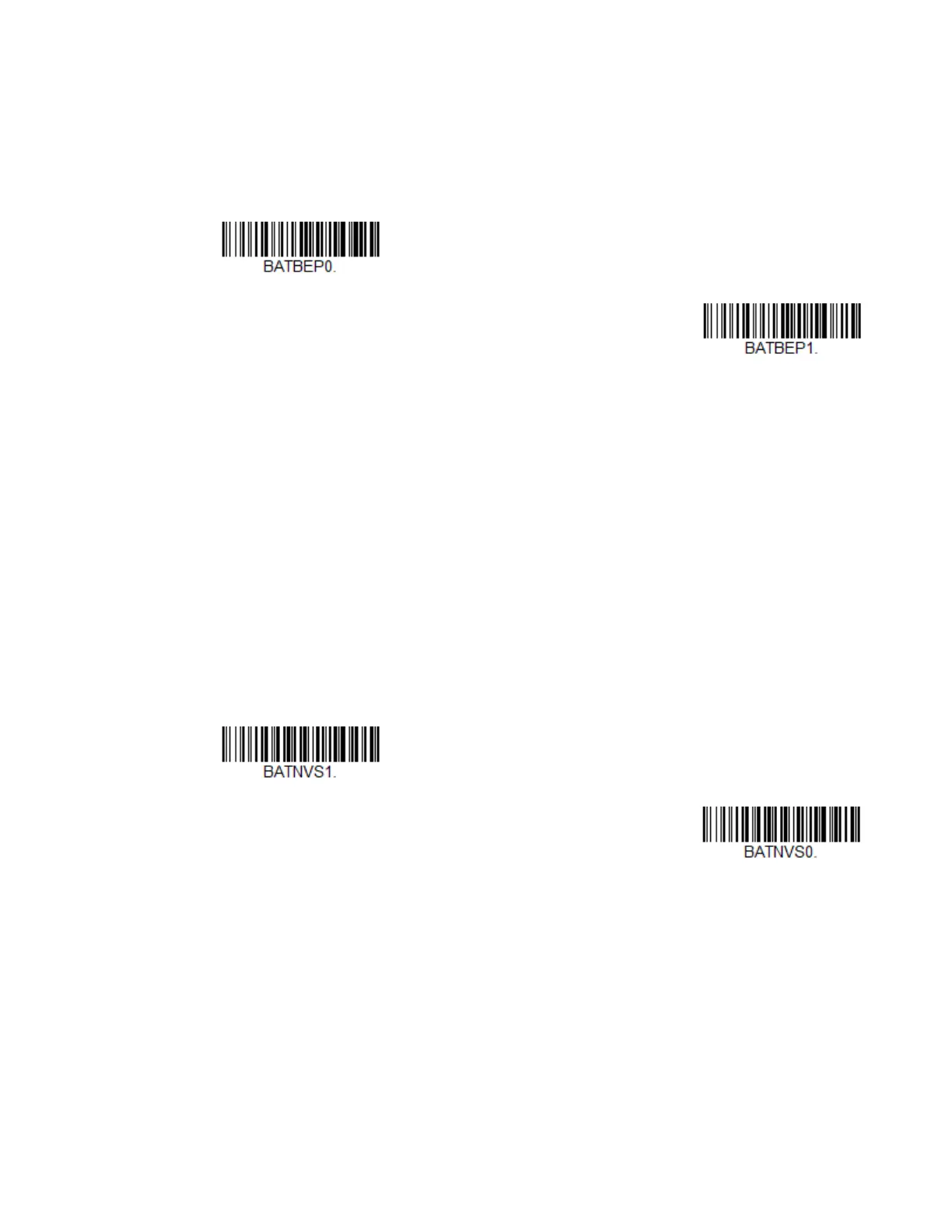

Batch Mode Beep Off
* Batch Mode Beep On
* Flash Storage
RAM Storage

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
