Honeywell Voyager 1472g User Manual

Voyager XP User Guide 149

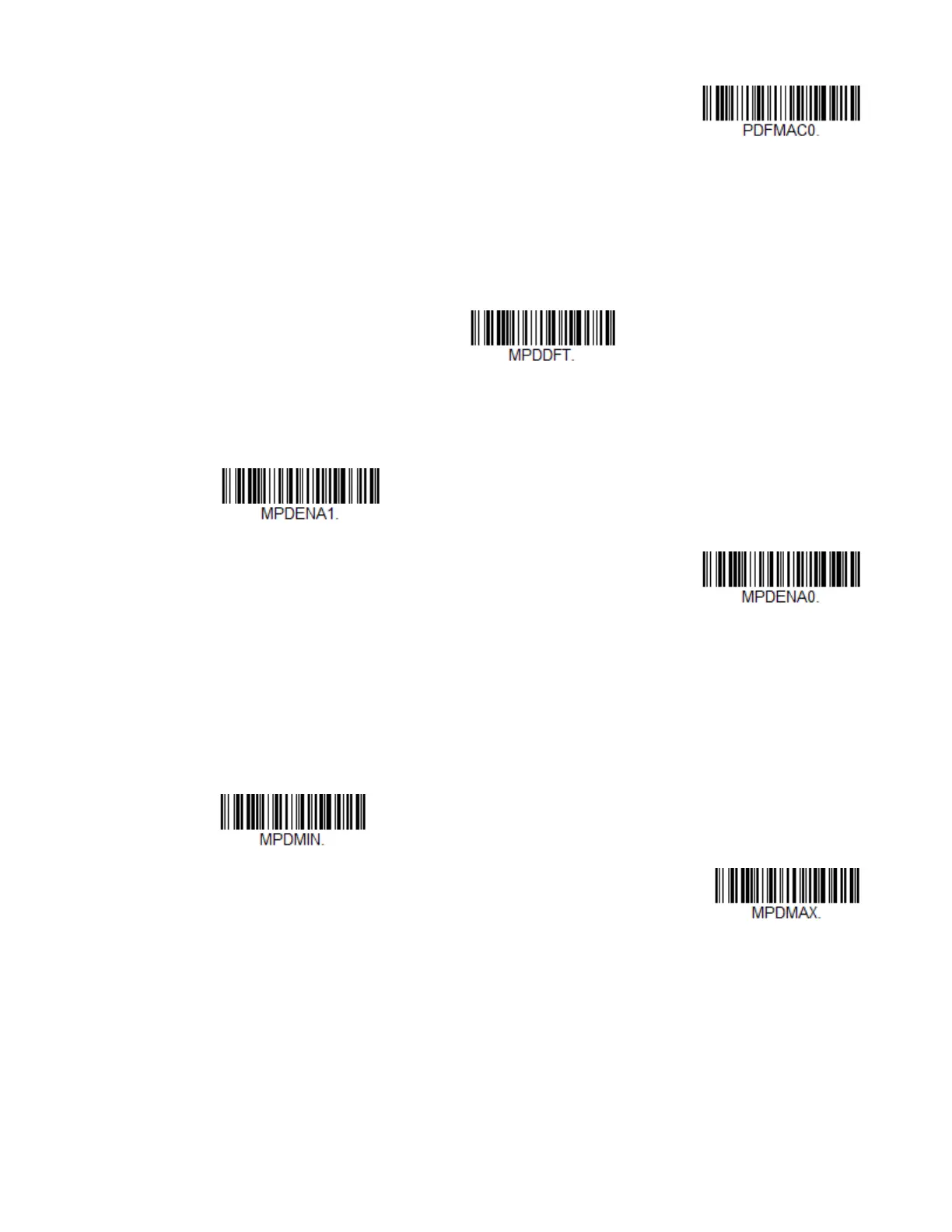

MicroPDF417
< Default All MicroPDF417 Settings >
MicroPDF417 On/Off
MicroPDF417 Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 114) for additional information. Minimum and Maximum
lengths = 1-366. Minimum Default = 1, Maximum Default = 366.
Off
On
* Off
Minimum Message Length
Maximum Message Length

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
