134 Voyager XP User Guide

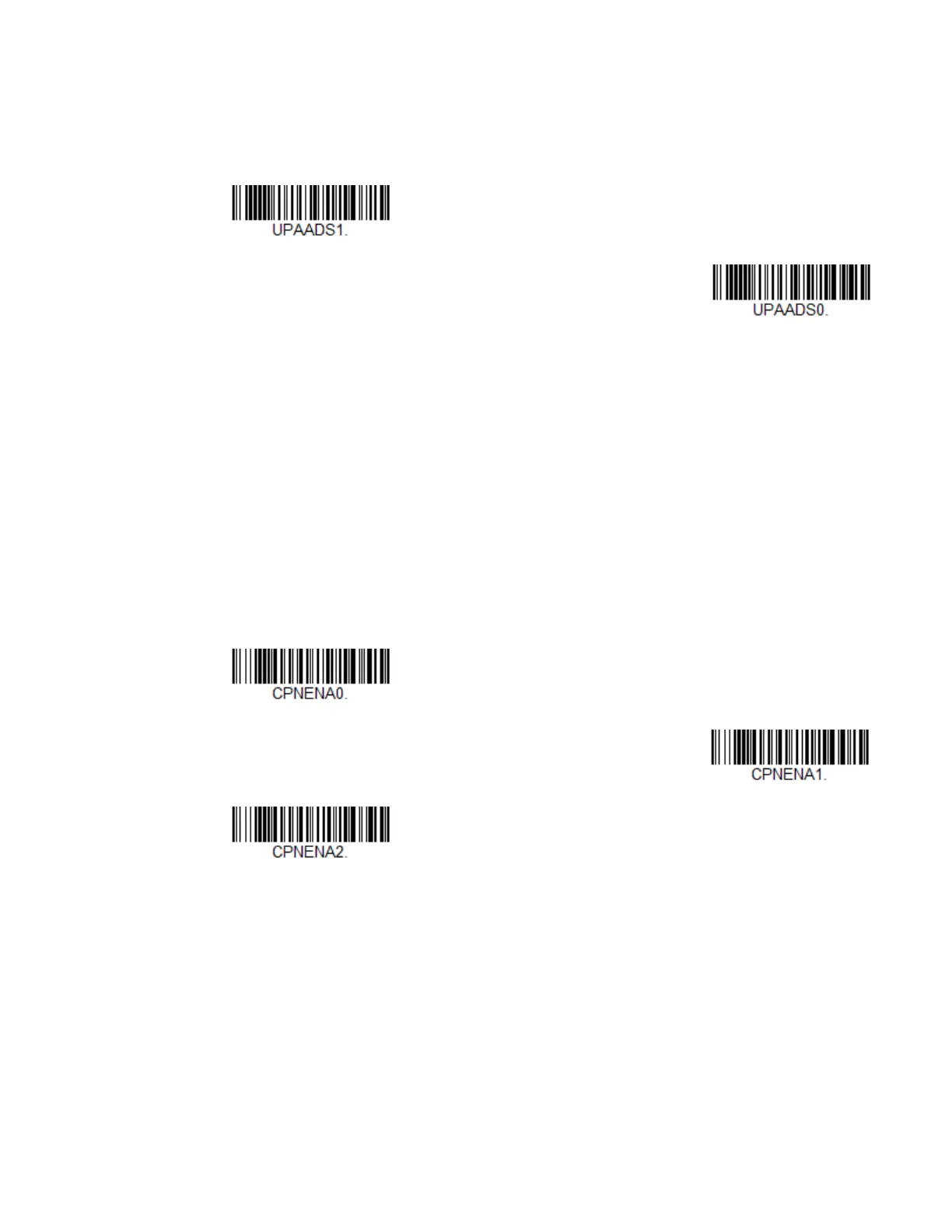

UPC-A Addenda Separator
When this feature is on, there is a space between the data from the barcode and the
data from the addenda. When turned off, there is no space. Default = On.
UPC-A/EAN-13 with Extended Coupon Code
Use the following codes to enable or disable UPC-A and EAN-13 with Extended
Coupon Code. When left on the default setting (Off), the scanner treats Coupon
Codes and Extended Coupon Codes as single barcodes.
If you scan the Allow Concatenation code, when the scanner sees the coupon
code and the extended coupon code in a single scan, it transmits both as one sym-
bology. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read the
coupon code and extended coupon code in a single read to transmit the data. No
data is output unless both codes are read. Default = Off.
* On
Off
* Off
Allow Concatenation
Require Concatenation

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
