Honeywell Voyager 1472g User Manual

202 Voyager XP User Guide
Keyboard Wedge

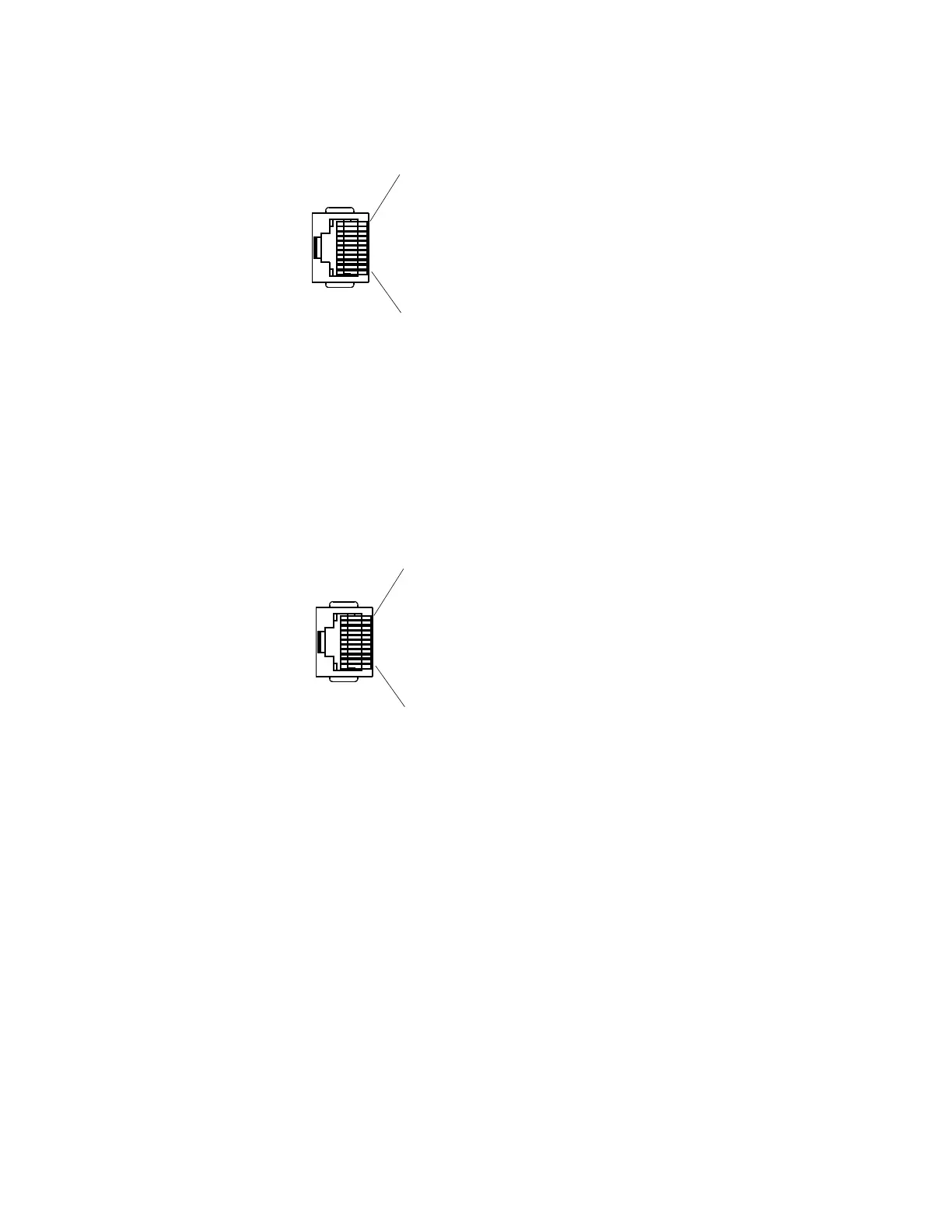

10 Pin RJ41 Modular Plug
Serial Output
10 Pin RJ41 Modular Plug
1Cable shield
2Cable select
3Supply ground
4Terminal data
5Terminal clock
6Keyboard clock
7+5V power
8Keyboard data
9
10
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
