Honeywell Voyager 1472g User Manual

60 Voyager XP User Guide
To put the scanner in multiple scanner mode, scan the barcode below. Once you
scan this barcode, the scanner is unlinked from the base or Access Point and must
either be placed into the base, or you must scan the Access Point linking barcode in
order to relink.
Scanner Name
You may assign a name to each scanner you are using for identification purposes.
For example, you may want to have a unique identifier for a scanner that is receiv-
ing imaging commands sent from the base or Access Point.
The default name is in the format “ScannerName_Model_SN_XXXXXXXXXX” If you
have more than one scanner linked to a base, and they all have the same name, the
first scanner linked to the base receives commands. When renaming a series of
scanners with identical names, unlink all except one of the scanners from the base.
Perform the rename operation using either the barcodes on page 61, or by sending
the serial command :ScannerName:BT_NAMNewName. where ScannerName is the
current name of the scanner, and NewName is the new name for the scanner. If you
wish to change the names of additional scanners, link them one at a time and
repeat the :ScannerName:BT_NAMNewName. command for each scanner.

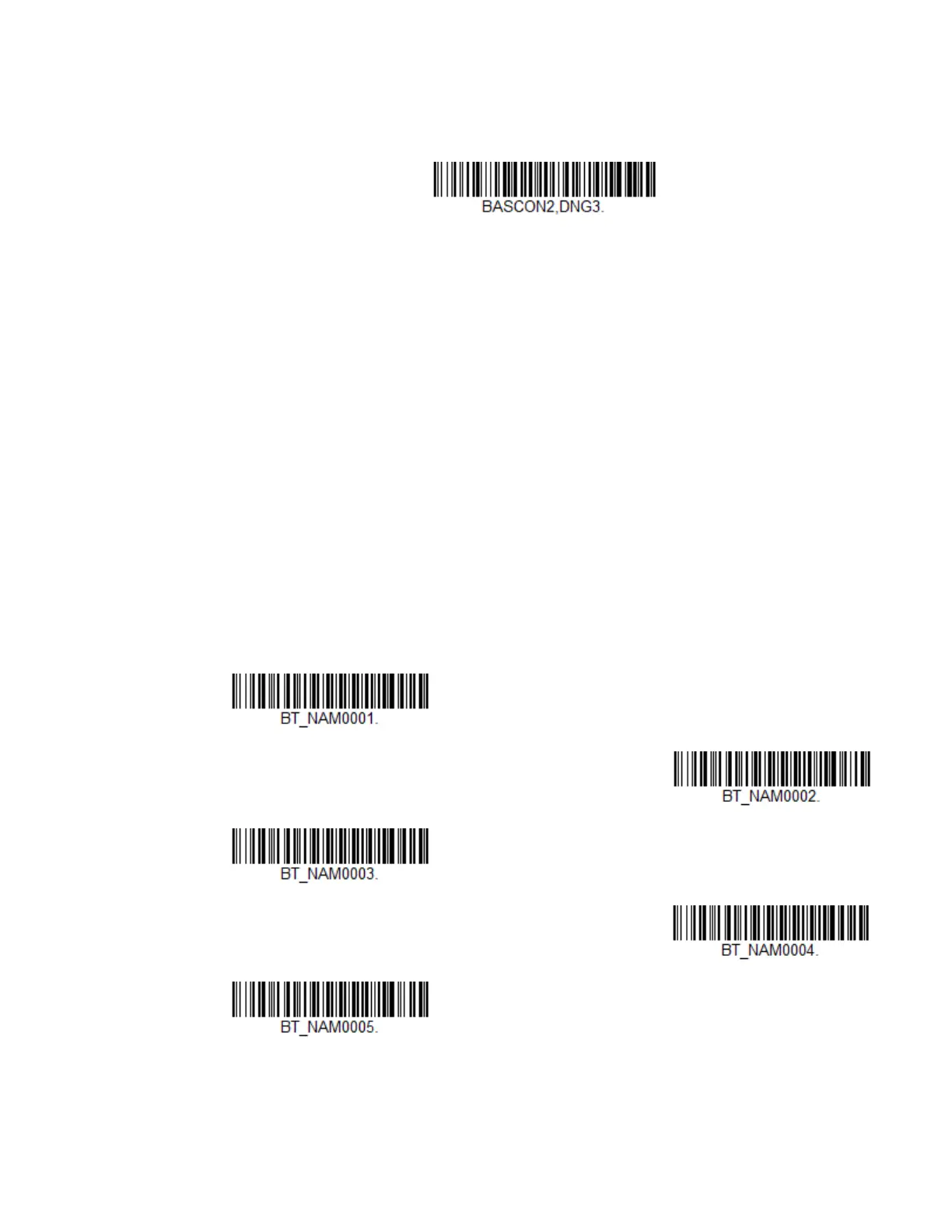

To rename scanners with sequential, numeric names, scan the barcodes below.
Scan the Reset code after each name change and wait for the scanner to relink to
the base or Access Point before scanning a barcode to rename the next scanner.
Multiple Scanner Operation
0001
0002
0003
0004
0005

Honeywell Voyager 1472g Specifications

General

Environmental Sealing	IP42
Expected Duration of Operation	14 hours
Expected Charge Time	4.5 hours
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP42
Weight	210 g (7.4 oz)
Connectivity	Bluetooth, USB
Scan Pattern	Area Image
Decode Capability	1D
Battery	2400 mAh Li-ion
Drop Specification	1.5 m (5 ft) to concrete
Number of Scans	50, 000 scans per charge
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	173 mm x 62 mm x 82 mm (6.8 in x 2.4 in x 3.2 in)
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC
Scan Technology	Area Imaging
