Honeywell Vuquest 3310g User Manual

6 - 6

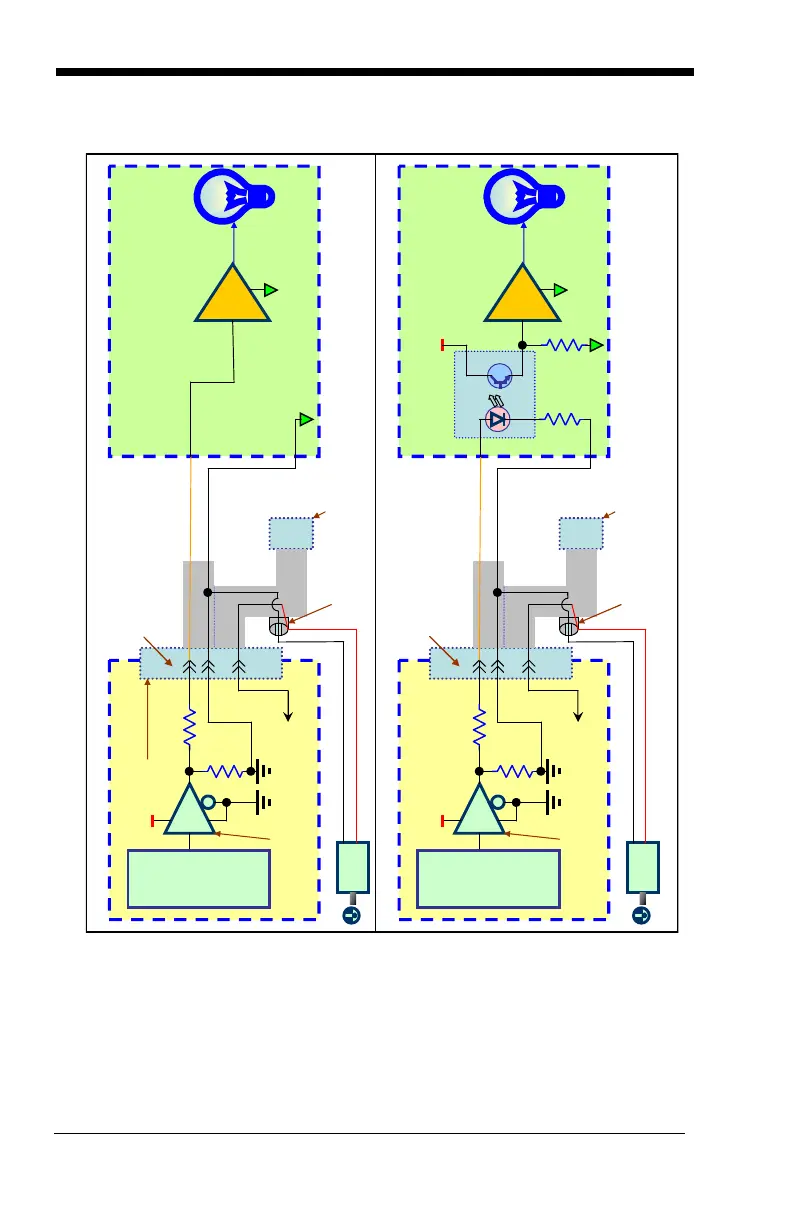

External Illumination Schematic
Standard Lamp Connection
On-Semiconductor MC74VHC1GT125DF1G Tri-state buffer or equivalent.
10K Resistor
100 Ohm
0603 Resistor
+4.9V to
+5.2V
Scanner
Controller
Pin 15
3310 Scanner
Pin 6
Customer Device
Power Link
(Not on all cables)
Lamp Connection Using Opto-Isolation Example
AC
Adapter
Customer Ground
+5.2V Scanner Power
+5. 2V
Opto-Isolator
Scanner Cable with
External Trigger and Lamp Signals
Note: All connections for power, ground and scanner signals not shown for clarity.
Yellow Wire
Pin 11
To Customer PC/Register
data connector
Customer
Power Supply
Black Wire
Lamp Driver/Switch
Customer Ground
On-Semiconductor MC74VHC1GT125DF1G Tri-state buffer or equivalent.
10K Resistor
100 Ohm
0603 Resistor
+4.9V to
+5.2V
Scanner
Controller
Pin 15
3310 Scanner
Pin 6
Customer Device
Power Link
(Not on all cables)
AC
Adapter
Customer Ground
+5.2V Scanner Power
+5. 2V
Scanner Cable with
External Trigger and
Lamp Signals
Yellow Wire
Pin 11
To Customer PC/Register
data connector
Black Wire
Lamp Driver/Switch
Customer Ground
Please see External Illumination Parameters for signal level information. Note: All connections for power and ground and communication not shown for
clarity. Additional details of the user connector can be found in the
3310 User’s Guide.
Us er C onn ec tor (15 pin HD-2 2
pin size).
Please see External Illumination Parameters for signal level information.
Note: All connections for power and ground and communication not shown for
clarity. Additional details of the user connector can be found in the
3310 User’s Guide.

Honeywell Vuquest 3310g Specifications

General

Type	Fixed bar code reader
Sensor type	-
Yaw reading angle	-65 - 65 °
Pitch reading angle	-45 - 45 °
Optical sensor resolution	838 pixels
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	PS/2
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Power source type	AC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Product color	White
International Protection (IP) code	IP53
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	USB

Weight and Dimensions

Depth	74 mm
Width	50 mm
Height	26 mm
Weight	75 g
