Honeywell Vuquest 3310g User Manual

3 - 11

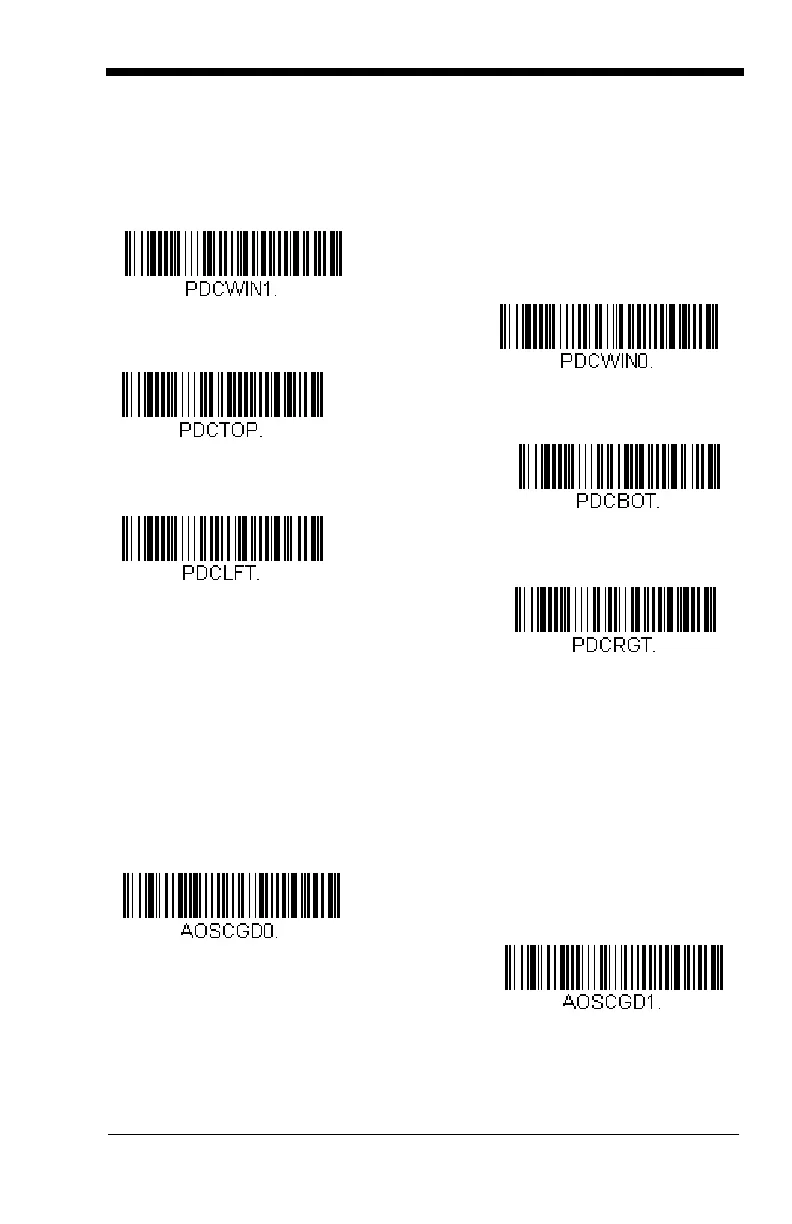

Scan Presentation Centering On, then scan one of the following bar
codes to change the top, bottom, left, or right of the centering window.
Then scan the percent you want to shift the centering window using digits
on the inside back cover of this manual. Scan Save. Default Presentation
Centering = 40% for Top and Left, 60% for Bottom and Right.
CodeGate
®
When CodeGate is On, the button is used to allow decoded data to be transmit-
ted to the host system. The scanner remains on, scanning and decoding bar
codes, but the bar code data is not transmitted until the button is pressed.
When CodeGate is Off, bar code data is transmitted when it is decoded.
Default = CodeGate Off Out-of-Stand.
Left of
Presentation Centering
Window
Top of Presentation Centering
Window
Right of Presentation Centering
Window
Bottom of Presentation
Centering Window
* Presentation Centering Off
Presentation Centering On
CodeGate On
Out-of-Stand
* CodeGate Off
Out-of-Stand

Honeywell Vuquest 3310g Specifications

General

Type	Fixed bar code reader
Sensor type	-
Yaw reading angle	-65 - 65 °
Pitch reading angle	-45 - 45 °
Optical sensor resolution	838 pixels
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	PS/2
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Power source type	AC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Product color	White
International Protection (IP) code	IP53
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	USB

Weight and Dimensions

Depth	74 mm
Width	50 mm
Height	26 mm
Weight	75 g
