Honeywell Vuquest 3310g User Manual

12 - 5

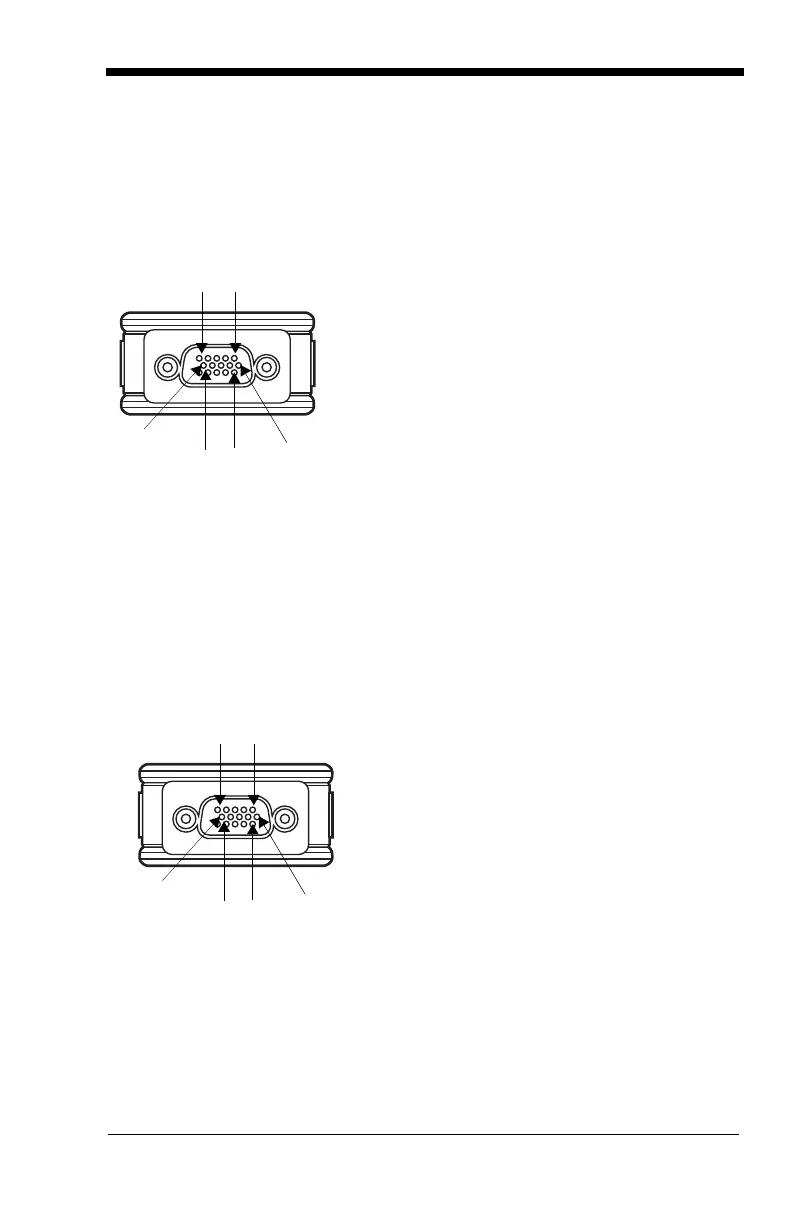

Standard Cable Pinouts
Keyboard Wedge
Note: Use of a cable with improper pin assignments may lead to damage to the
unit. Use of any cables not provided by the manufacturer may result in
damage not covered by your warranty.
Serial Output
Note: Use of a cable with improper pin assignments may lead to damage to the
unit. Use of any cables not provided by the manufacturer may result in
damage not covered by your warranty.
15 Pin D-type
1PC Data
2 KB Clock
3 KB Data
4 Reserved
5 Reserved
6 Ground
7 Reserved
8 Jump to Pin 11
9PC Clock
10 Host Power (+5V)
11 Adapter Power
12 Jump to Pin 10
13 Reserved
14 Reserved
15 Reserved
5
6
11
1
15
10
15 Pin D-type
1 Reserved
2 Reserved
3 Reserved
4 Reserved
5 Reserved
6Ground
7TXD
8RXD
9 Reserved
10 Reserved
11 Adapter Power
12 CTS
13 RTS
14 External Trigger
15 External Illumination
5
6
11
1
15
10

Honeywell Vuquest 3310g Specifications

General

Type	Fixed bar code reader
Sensor type	-
Yaw reading angle	-65 - 65 °
Pitch reading angle	-45 - 45 °
Optical sensor resolution	838 pixels
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	PS/2
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Power source type	AC
Power consumption (standby)	0.45 W
Power consumption (typical)	2.3 W
Product color	White
International Protection (IP) code	IP53
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	USB

Weight and Dimensions

Depth	74 mm
Width	50 mm
Height	26 mm
Weight	75 g
