horsch FOCUS ST - Tines

Tines
The tines are a combination of loosening tools
and fertiliser coulter. They loosen the soil, re-
move harvesting residues from the root area and
place the fertiliser into the seed row.
The TerraGrip III tool carriers are equipped with
a spring loaded stone release protection. The
maximum tripping force is 670 kg.

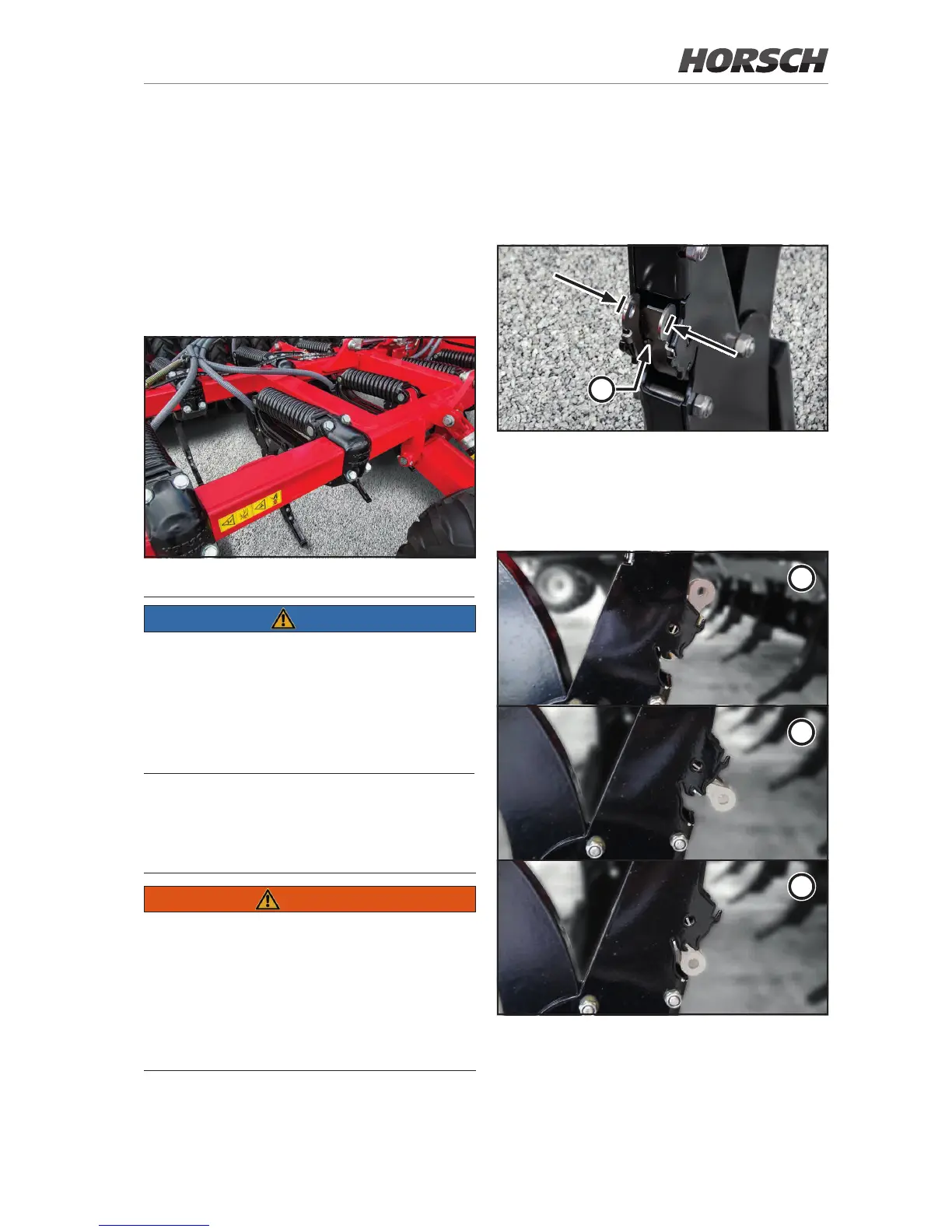

TerraGrip III tool carrier
NOTE
The stone release protection serves as protec-
tion system against obstacles in the 󰘰eld.
¾ Reduce the working depth if the stone re-
lease protection is often triggered under hard
ground conditions, even without stones as
obstacles.
Maintenance
¾ Check bearings for wear.
WARNING
Danger of severe injuries caused by the ten-
sioned spring assembly.
¾ Replace the spring assembly only as a com-
plete unit (workshop work)!
¾ Never open the spring assembly.
¾ If a tine is blocked or jammed by stones etc.,
please contact the HORSCH Service.
Adjusting the fertiliser placement
The fertiliser depot can be placed either on the
surface of the 󰘰eld, or in the soil. In addition to
this, fertiliser can also be placed half in the soil
and half on the surface.
A
Spring 󰘱ap to adjust the fertiliser placement
¾ Press the spring 󰘱ap (A) down and let it click
into place at the desired position.
¾ Adjust the 󰘱aps on all tines equally.
1
2
3
Three positions of the spring 󰘱ap
1 Placement into the ground
2 Placement on the 󰘰eld surface
3 Placement in the soil and on the 󰘰eld surface
35
