Operation
Whenever working on the machine pay
attention to the associated safety notes
in the chapter "Safety and prevention
of accidents"!
Commissioning / Tractor
change
During initial commissioning and when chang-
ing the tractor, the machine must be adapted
to the tractor.
WARNING
Dropping / lowering machine parts can cause
severe crush injuries etc.!
Instruct persons to leave the danger zone. Comply
with the accident prevention instructions.

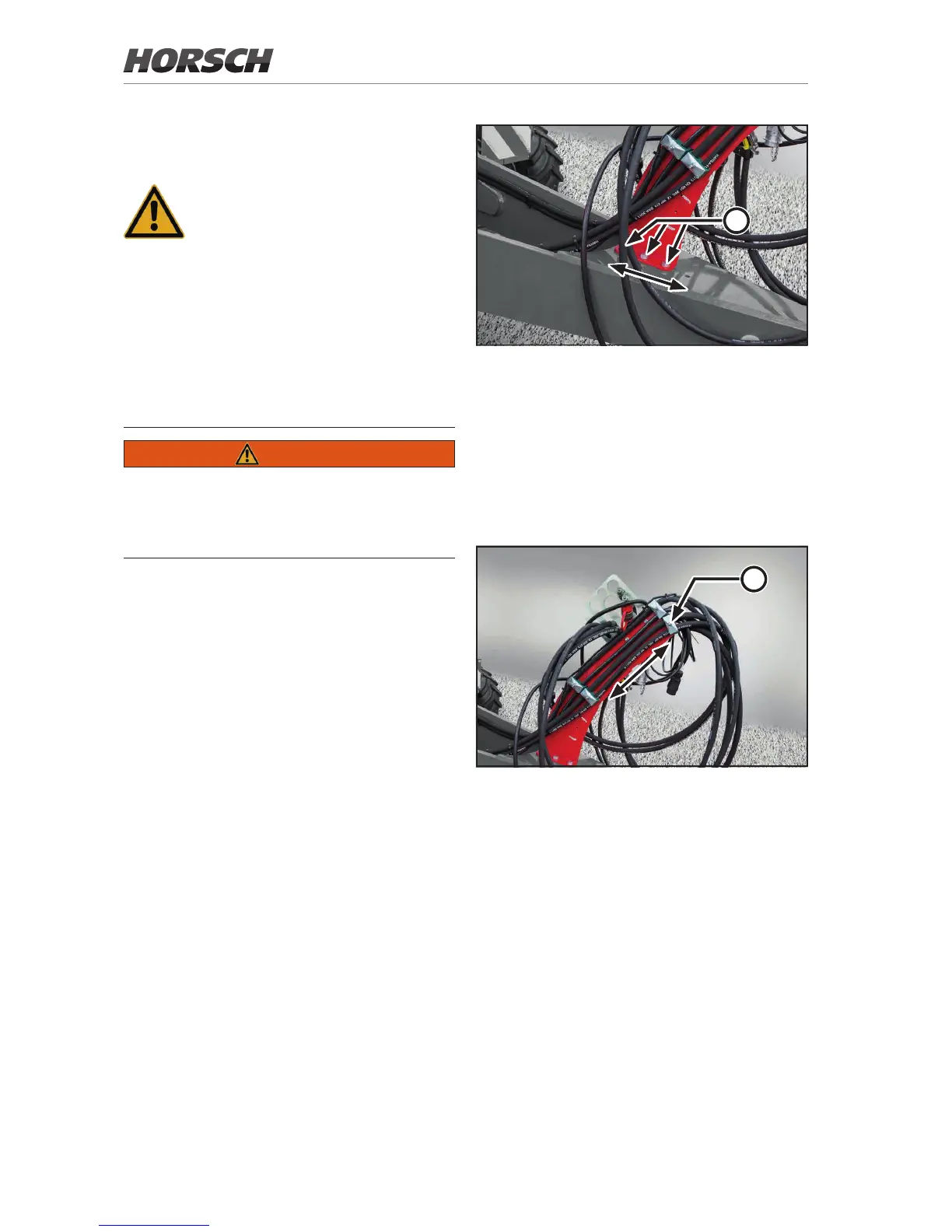

Adapting the hose connection
Adapt the hose bracket and the hose length to
the tractor.
The hoses should thereby routed in such a way,
that hoses and couplings will not be damaged
under any operating conditions in the eld, in
transport position and when cornering.
Adapt the position of the hose bracket
¾ Loosen three screws A.
¾ Slide the hose bracket one bore forward or
backward, depending on the position. There
should be sucient ground clearance when
lifting/lowering and when cornering.
¾ Retighten the three loosened screws.
A
Change the position of the hose bracket
Adapting the hose lengths
¾ Adjust the free length of the hoses to the
tractor. For this purpose loosen the clamping
brackets B and move the hoses accordingly.
¾ Please consider also a loop for cornering.
¾ Fasten the brackets B again.
B
Changing the free length of the hydraulic hoses
44
