Hydraulic system
WARNING
Accidental hydraulic movements (e.g. caused
by passengers or children) can lead to severe
accidents and injuries!
Secure or lock the control units on the tractor.
Instruct persons to leave the swivelling range of
foldable machine parts.
Core machine
3
1
2
V1V2
C1C2
V1V2
C1C2
V2V1
C2
C1
HZ
S
1
2
3
4
5
6
7
8
8
7

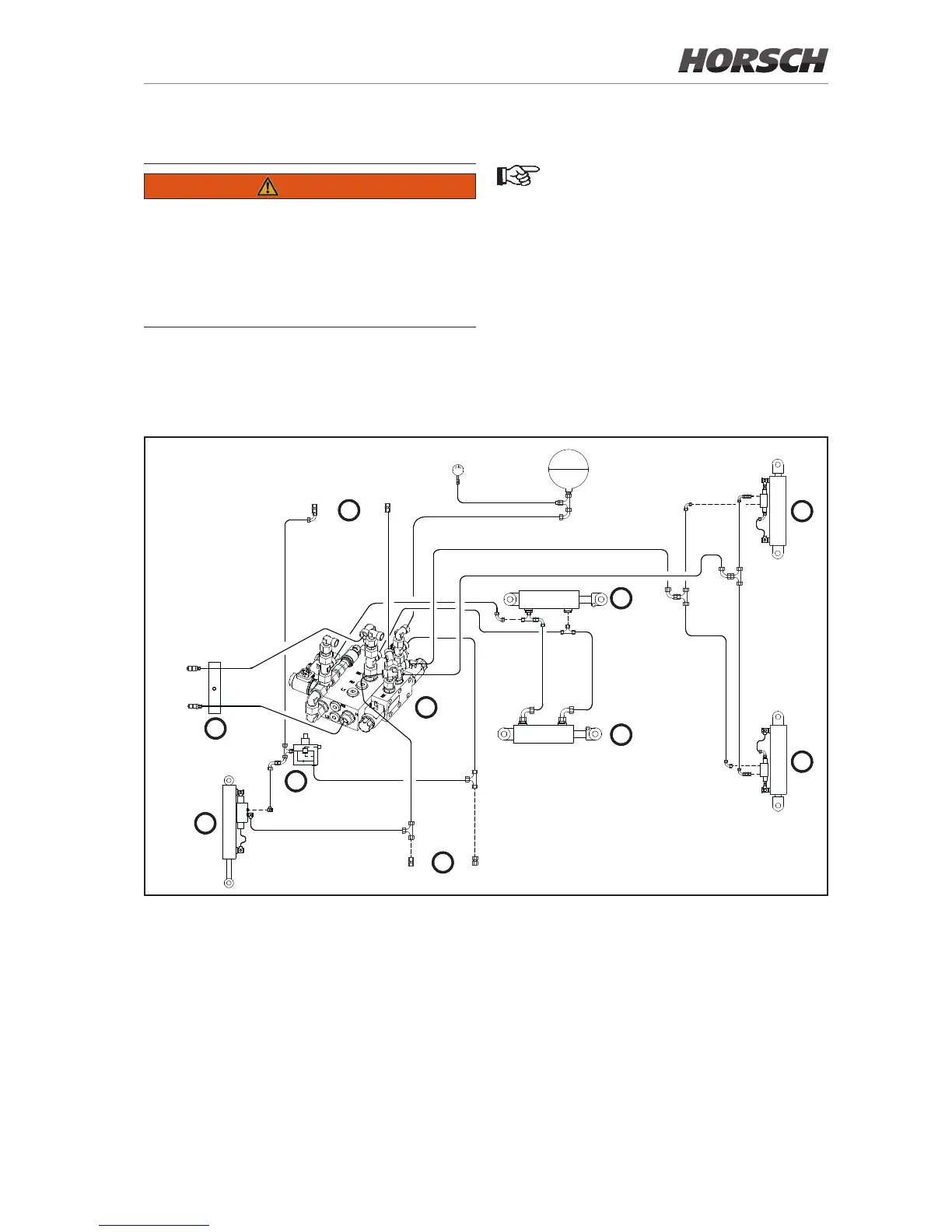

Hydraulics Focus TD core machine
1 Connection of tractor control unit
2 Hydraulic cylinder for access steps
3 Pressure sequence valve
4 Connection levelling discs
5 Hydraulic valve block
6 Connection folding tine eld
7 Hydraulic cylinder Lift
8 Hydraulic connection, folding coulter bar
Pay attention to the notes on hydraulics
and pressure accumulator in the chapter
"Safety and prevention of accidents"!
27
