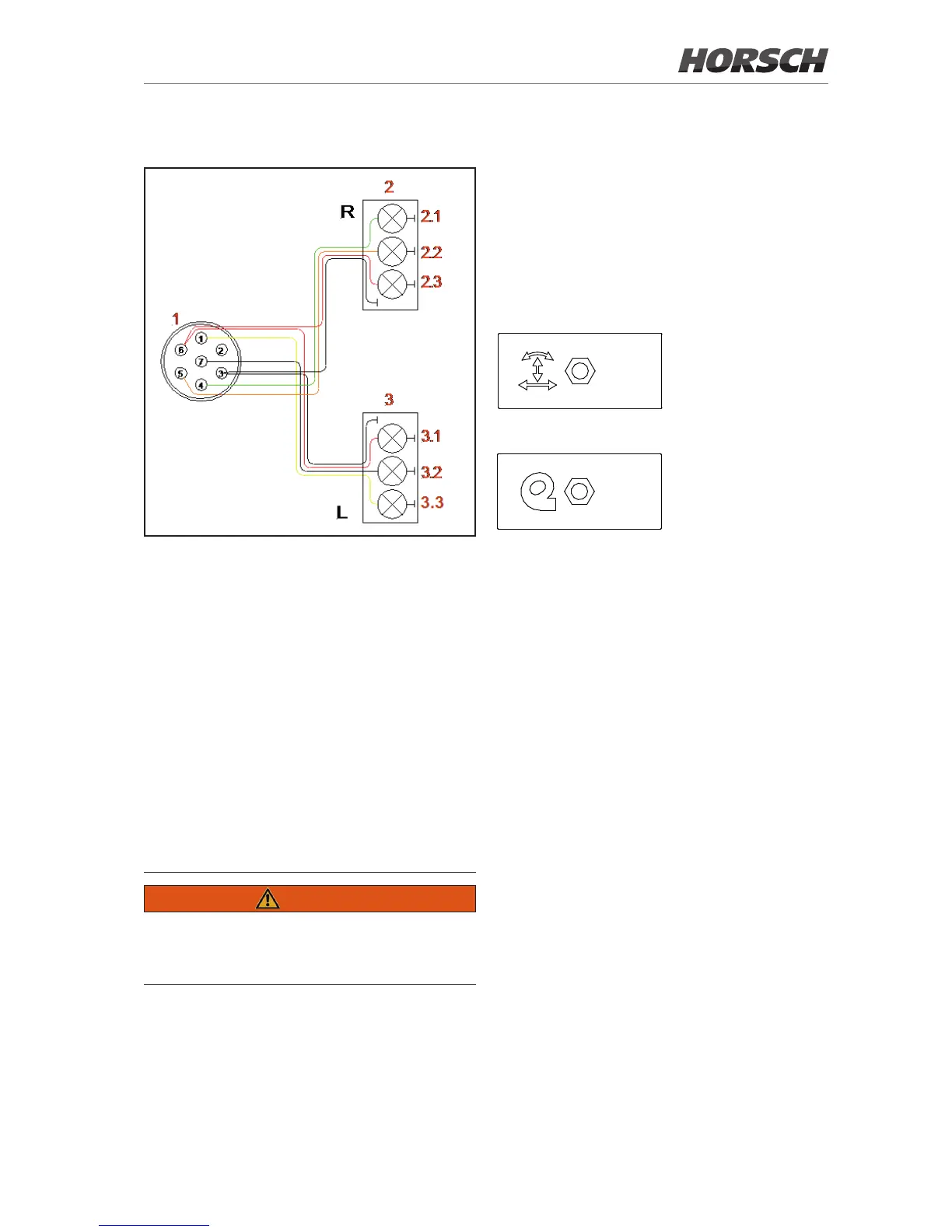

Lighting
1. 7-pin plug
2. Rear-light, right
2.1 Lamp, direction indicator
2.2 Lamp, tail-light
2.3 Lamp, brake light
3. Rear-light, left
3.1 Lamp, brake light
3.2 Lamp, tail-light
3.3 Lamp, direction indicator
Plug and cable assignment
No. Desig. Colour Function
1 L yellow Indicator left
2 54 g --- ---
3 31 white Earth
4 R green Indicator right
5 58 R brown Rear-light, right
6 54 red Brake light
7 58 L black Rear-light, left
WARNING
Trac accidents caused by defective lighting.
Check the lighting system at regular intervals.
Check warning notices and lamps for cleanliness.
Notes on operation on the
machine
Identication of hydraulic hoses
The symbol is always found on the hose requiring
pressure to bring the machine to transport posi-
tion (raising, folding, etc.).
