Core machine 3-point
C1
C2
V1
V2
C2
C1
V2
V1
C1
V1
V2
C2
1
2
3
HZ
S
V1
V2
C1
C2
1
2
3
4
5
6
7
7
8
8
9
10
11
11

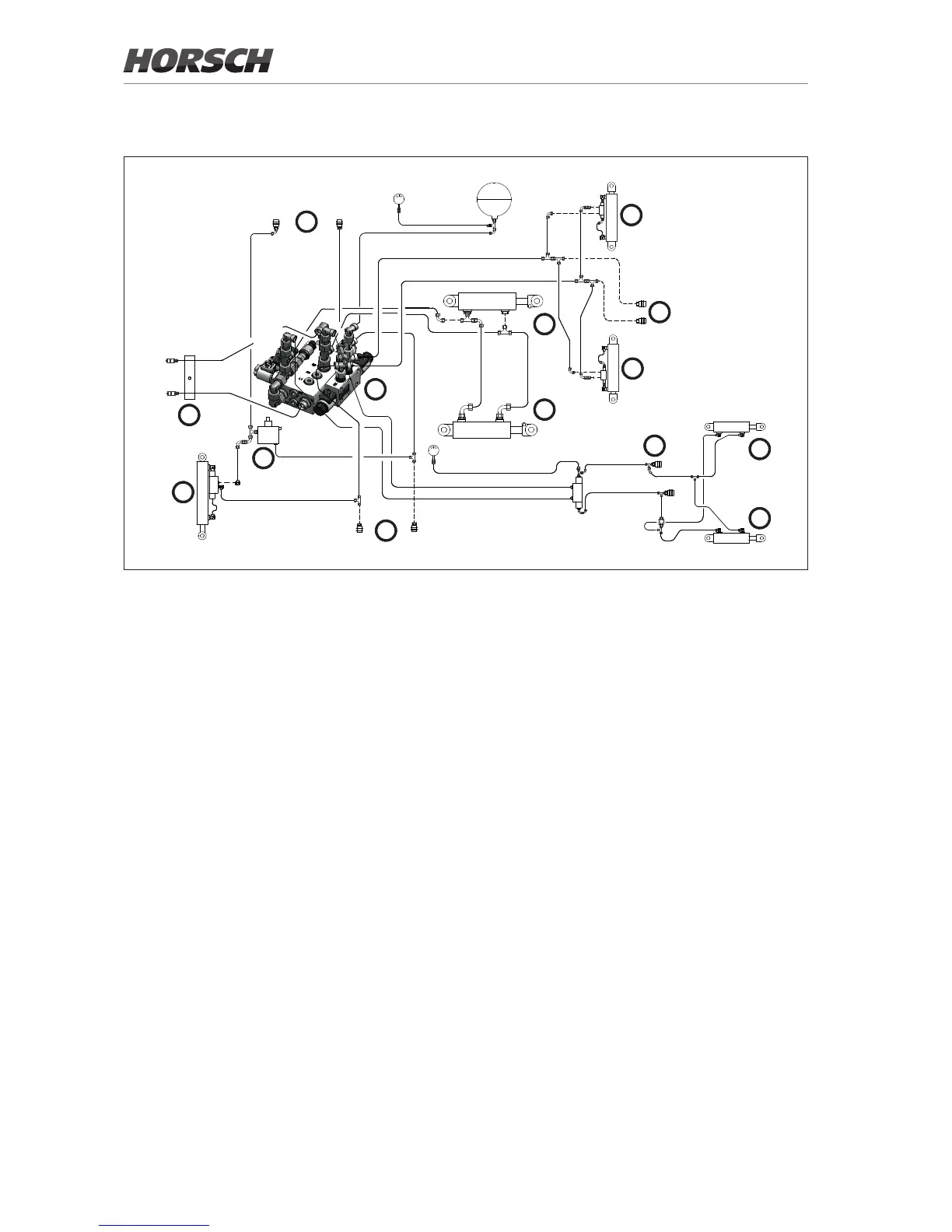

Hydraulics Focus TD 3-point core machine
1 Connection of tractor control unit
2 Hydraulic cylinder for access steps
3 Pressure sequence valve
4 Connection levelling discs
5 Hydraulic valve block
6 Connection folding tine eld
7 Hydraulic lift cylinder
8 Hydraulic cylinder valves packer
9 Interface valves coulter bar
10 Interface pre-emergence markers
11 Tractor link arm implement / lift
