horsch FOCUS ST - Page 33

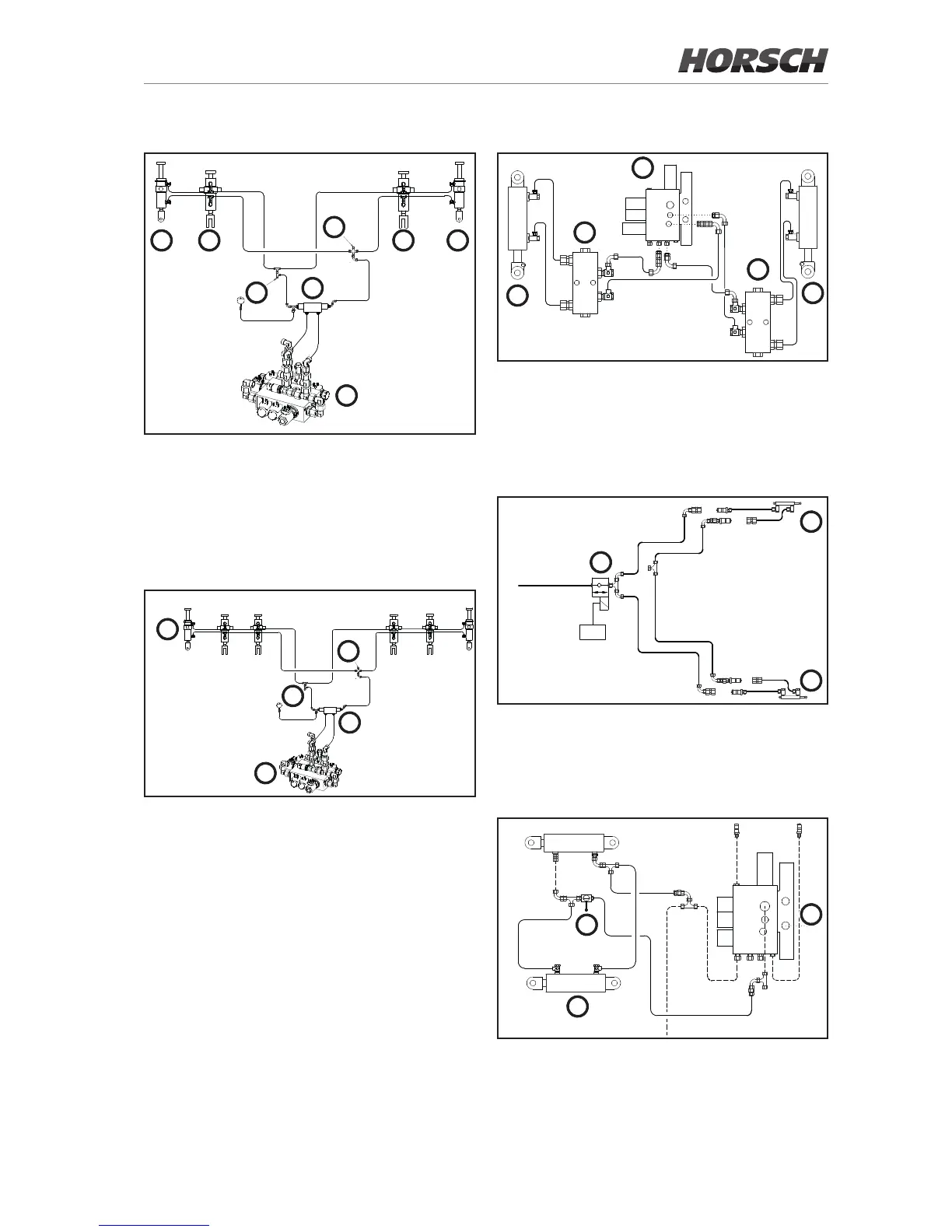

Hydraulic diagram Focus 4 TD
C1
V1 V2
C2
1
2
3
3
4 4 44
Hydraulics coulter attachment Focus 4 TD
1 Hydraulic valve block
2 Lock valve, single acting 90°
3 Connection for pre-emergence markers
4 Hydraulic cylinder for coulter bar
Coulter attachment Focus 6/7 TD
C1
V1
V2
C2
1
2
3
3
4
Hydraulics coulter attachment Focus 6/7 TD
1 Hydraulic valve block
2 Lock valve, single acting 90°
3 Connection for pre-emergence markers
4 Hydraulic cylinder for coulter bar
Bout marker Focus TD
SK
HK
S
SZ
R1
L1
R2L2
HZ
1
2
3
2
3
Hydraulics bout markers Focus 4/6/7 TD
1 Valve block
2 Lock valve, double 180°
3 Hydraulic cylinder bout marker
Pre-emergence markers Focus TD
2
1
FGS Box
1
2
2
Hydraulics pre-emergence markers Focus 4/6/7 TD
1 Hydraulic valve
2 Hydraulic cylinder pre-emergence marker
Drawbar - swinging drawbar hitching
S
SZ
R1
L1
L2 R2
HZ
SK
HK
2
3
1
Hydraulics drawbar
1 Hydraulic valve block
2 Shut-o󰘯 valve
3 Hydraulic cylinder for drawbar
29
