A
B

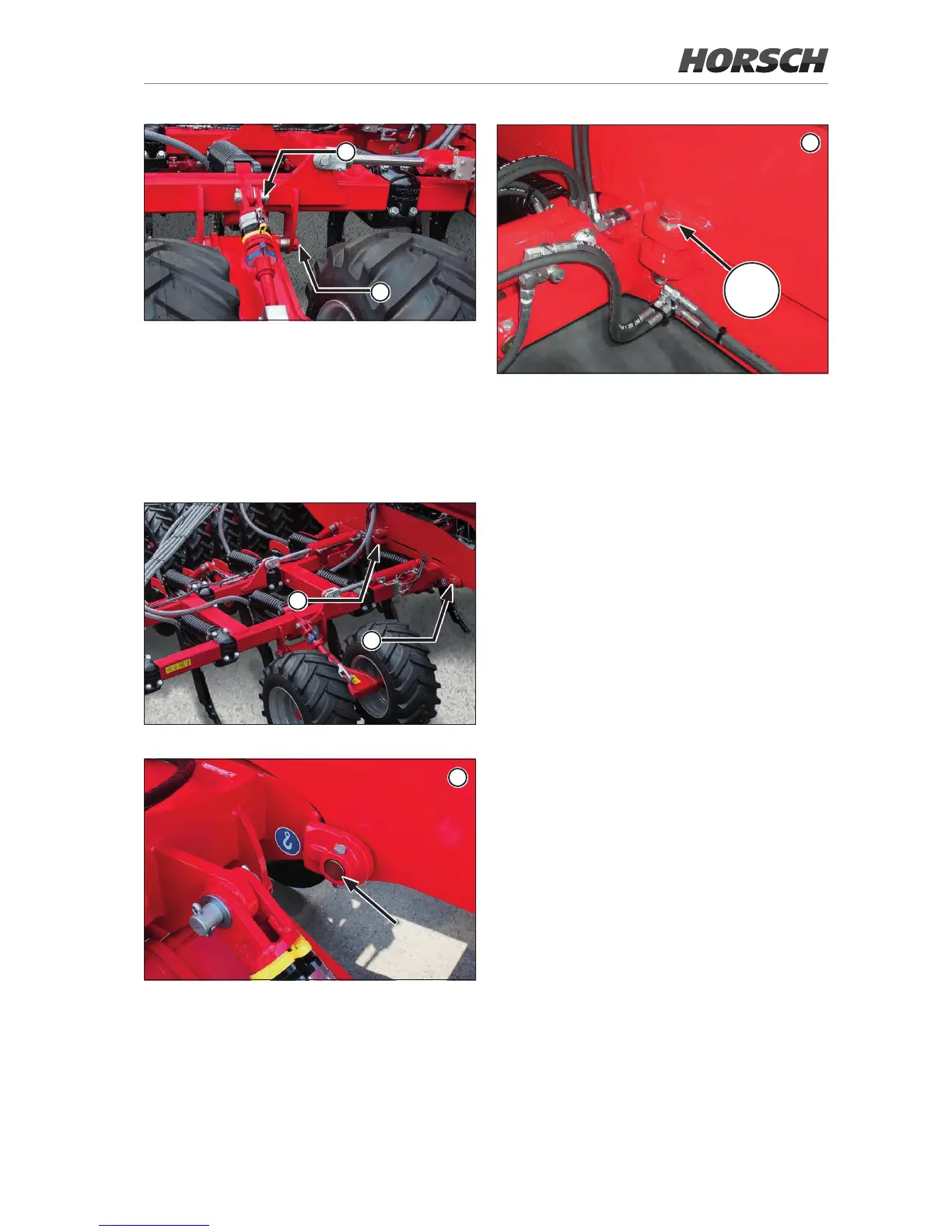

Fastening of the support wheels
¾ Remove bolts A and B and take o the sup-
port wheels.
¾ Lower the tine eld on heavy load rollers and
secure it against rolling away.
¾ Loosen and remove the bolt C and the screw
D on both sides of the machine.
C
D
Screw ttings tine eld - core machine
C
Bolt A
D
700 Nm
Screw B
¾ Slightly lift the machine and use appropriate
equipment (e.g. telescopic loader, forklift truck
or tractor) to pull the tine eld out from under
the Focus.
¾ Place the disc harrow eld under the Focus TD.
¾ Carefully lower the machine onto the disc
harrow eld.
¾ Fasten bolt C and screw D again.
Tighten screw B with a tightening torque of
700 Nm.
¾ Re-establish the hydraulic connections be-
tween disc harrow eld and core machine.
63
