Side Panel kit 117

Installing the side panels

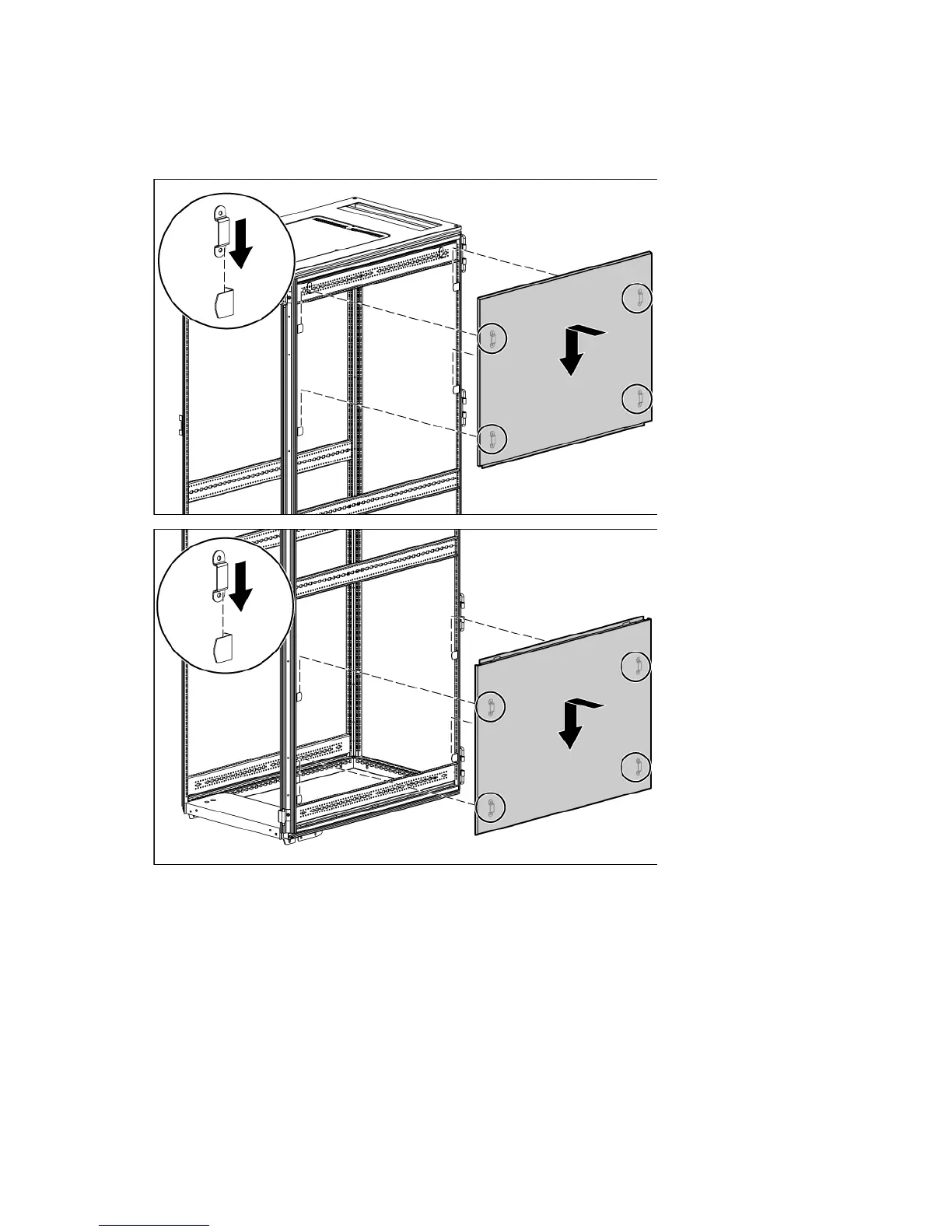

1. Install the top and bottom side panel by sliding the brackets on the side panel behind the tabs on the

rack frame.
