Front Door kit 47

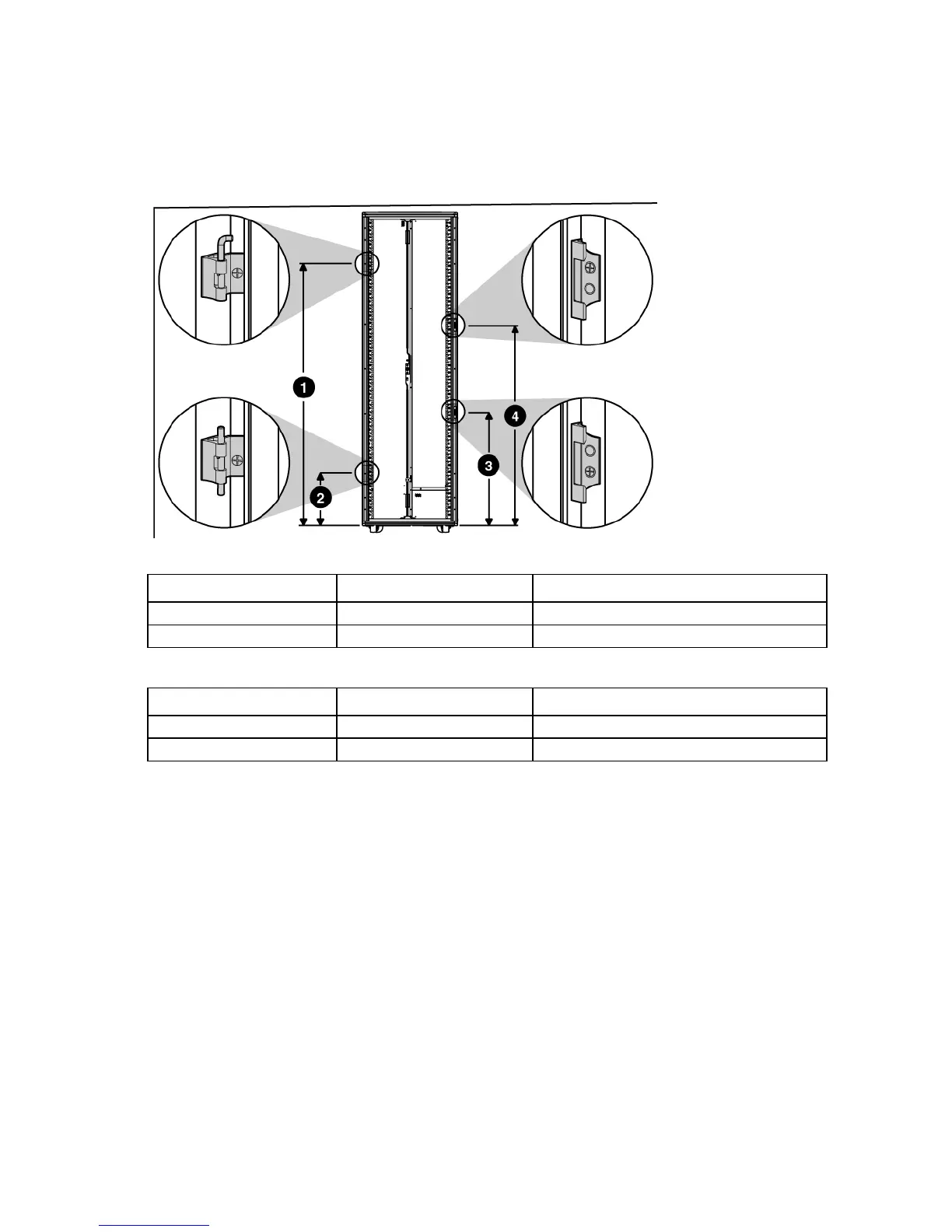

Installing the hinge brackets and lock catches
The following tables indicate where the hinge brackets and lock catches are to be mounted in a 36U or 42U
front door installation. The distance is measured from the bottom of the rack to an indicated hinge bracket or
lock catch fastening hole.
Hinge bracket mounting distance from the bottom of the rack
Position number 36U 42U
1
1598.5 mm (62.9 in) 1856 mm (73.1 in)
2
98.5 mm (3.9 in) 98.5 mm (3.9 in)
Lock catch mounting distance from the bottom of the rack
Position number 36U 42U
3
569.5 mm (22.4 in) 698.5 mm (27.5 in)
4
