HP 10000 G2 Series Installation Guide

100 Kilo Sliding Shelf kit 12
3.

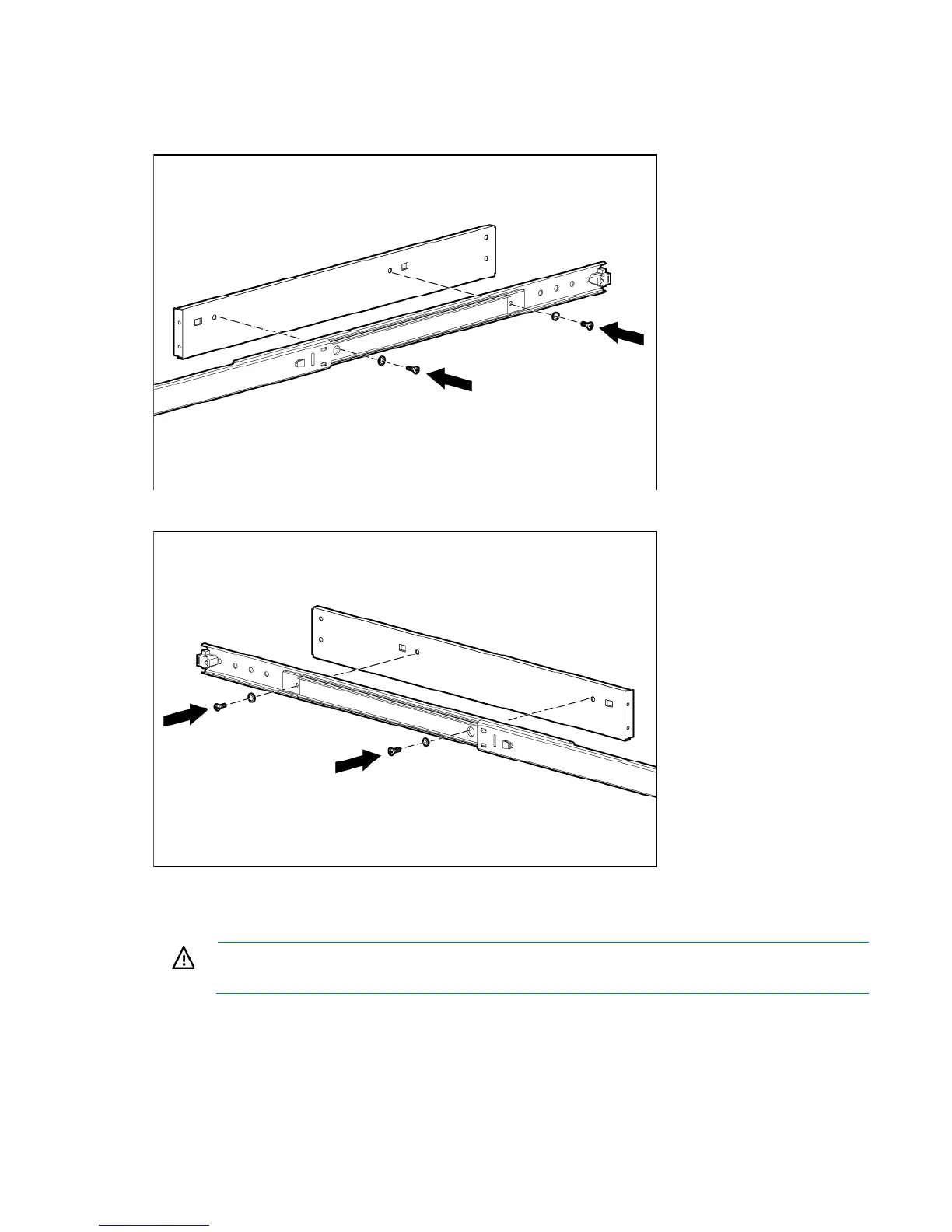

Extend the inner slides of the sliding rail until the screw holes on the sliding rail and the left rail with fixed
brackets are aligned. Gently push down on the sliding rail to lock it into place.
4. Secure the rails together with two M4 x 12 flat HD screws and M4 external washers.
5. Repeat steps 1 through 4 for the right rail with fixed brackets.
Installing the sliding shelf rail assemblies
WARNING: To reduce the risk of personal injury or damage to the equipment, be sure to secure
mounted rack components when moving the rack.
You must install the sliding shelf rail assemblies before installing the sliding shelf. Follow these steps closely
to install the sliding shelf rail assemblies into the rack:

HP 10000 G2 Series Specifications

General

Rack Height	42U
Weight Capacity	2000 lbs
Color	Black
Product Type	Rack
Material	Steel
Adjustable Leveling Feet	Yes
Cable Management	Yes
Mounting Type	Floor-standing
Width	24 inches
Height	78.7 inches
Compatible Devices	HP Servers
