HP 10000 G2 Series - Installing the Solid Rear Doors

Rack Air Duct kit 97
b.
Using a T-25 Torx driver, insert and tighten four M6 machine screws into each corner hole (3).

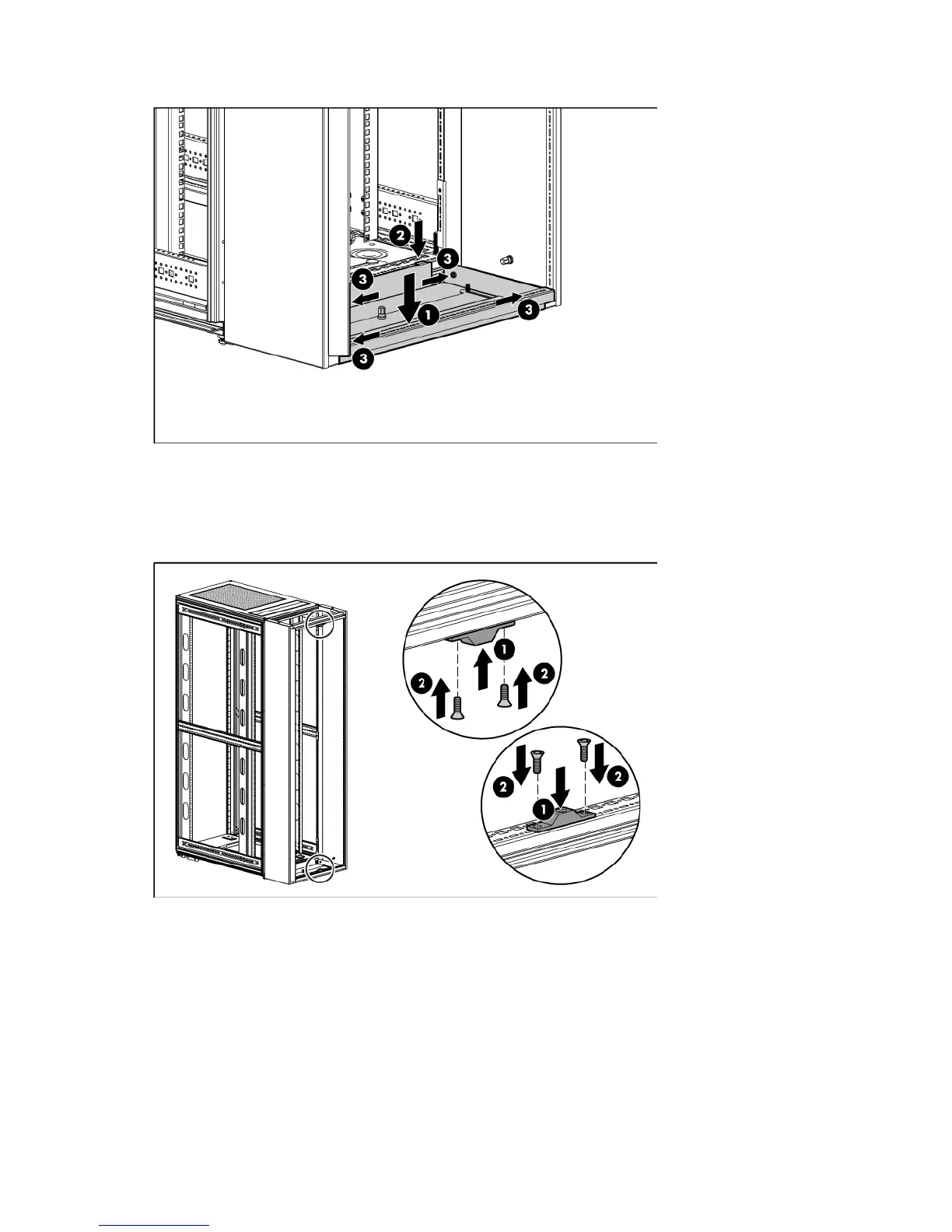

Installing the solid rear doors
1. Using a T-25 Torx driver, insert and tighten two screws into each of the upper and lower rear door lock
catches.
2. Install the hinges brackets.
a. Align the eight hinge brackets that you removed from the rear of your rack to the designated
locations on the rear extension assembly (1).
