HP 10000 G2 Series - Installing the Cable Management Inner and Outer Trays

129 pages

To Next Page

To Previous Page

Cable Management Tray kit 39

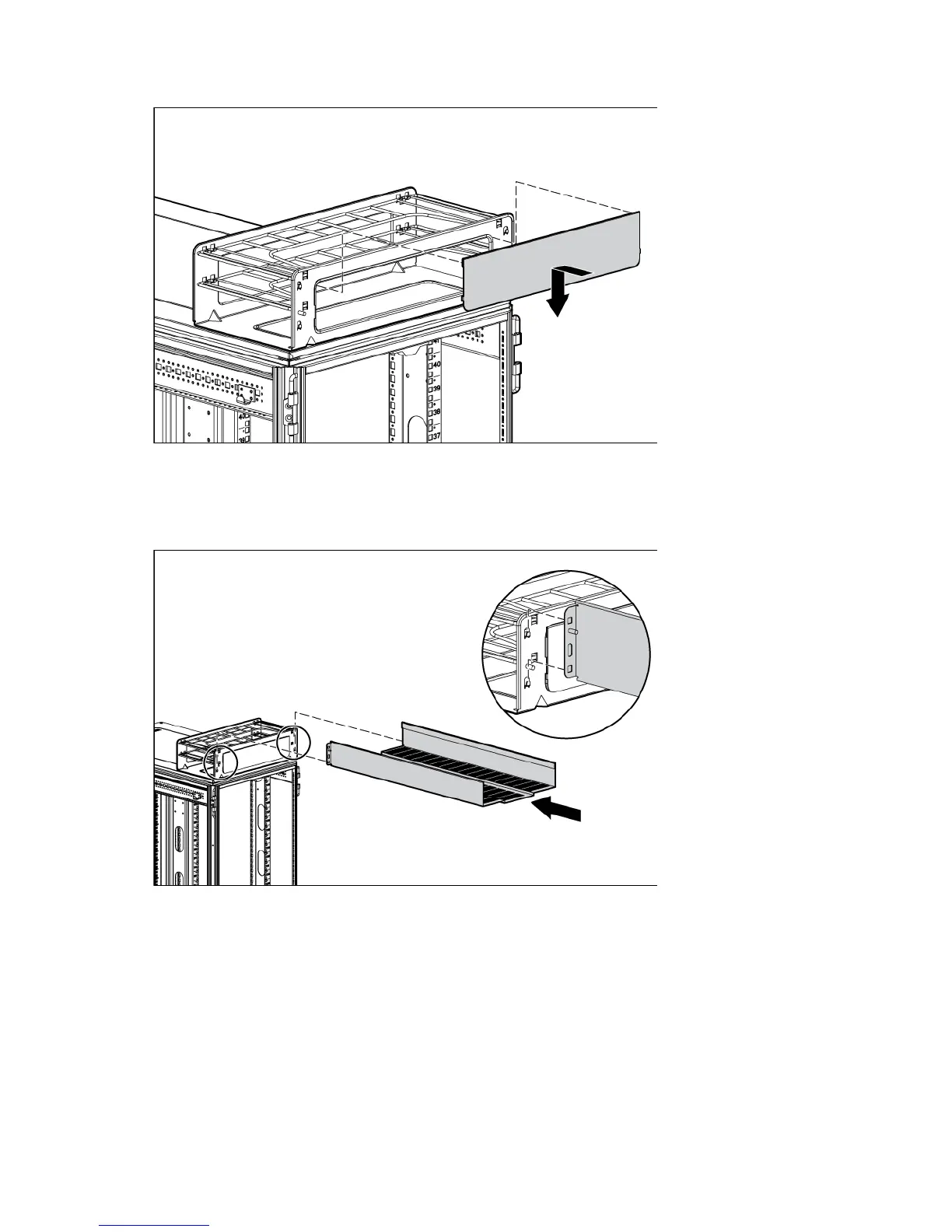

Hook and slide the cover into place.

Installing the cable management inner and outer trays

1. Attach the cable management outer tray to the cable management tray.
