Light kit 77

Installing the 110V/220V Light

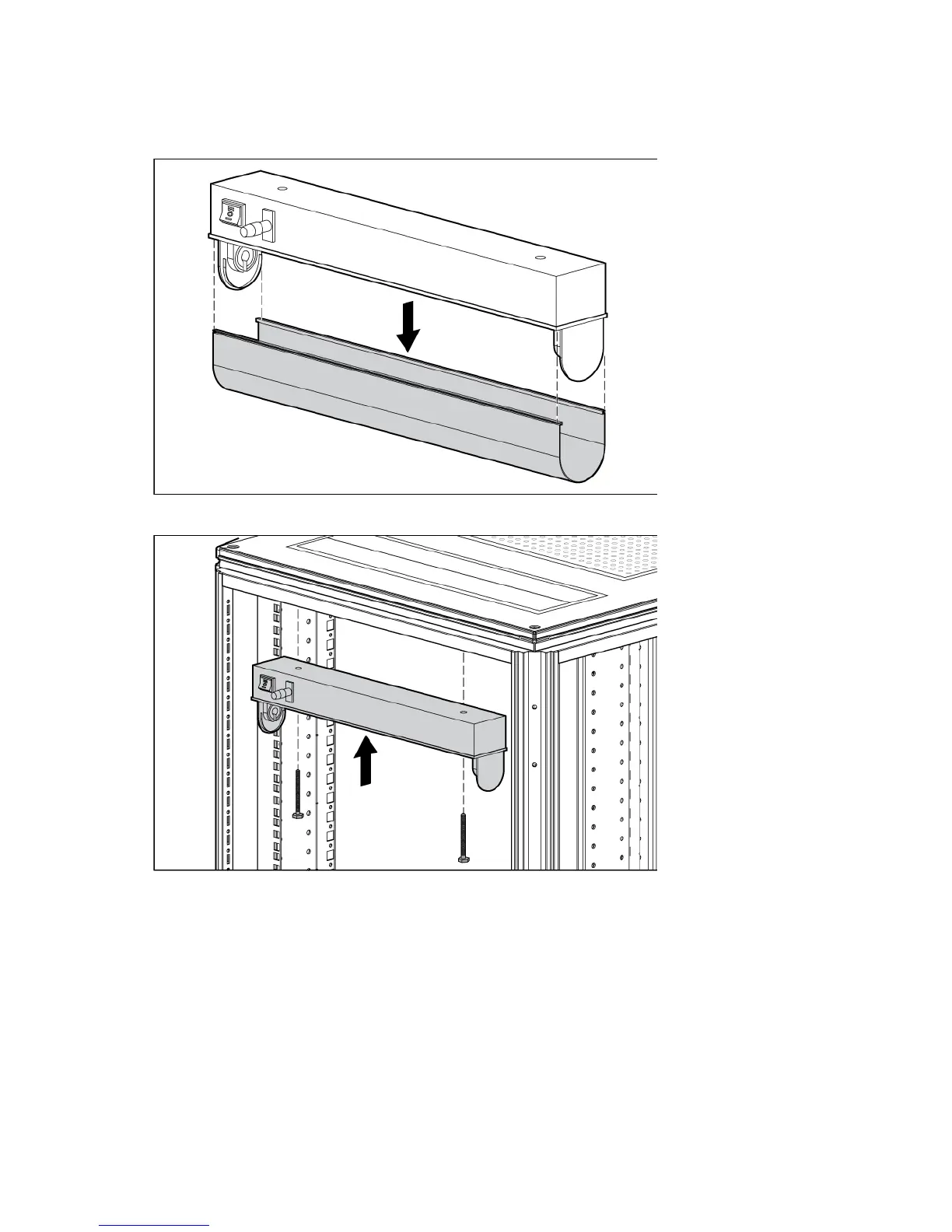

1. Remove the fluorescent lamp cover.

2. Insert two screws, securing the light to the rack frame.
