Ground Bonding kit 55

From the rack to a building facility, contact your building supervisor for more information. The following

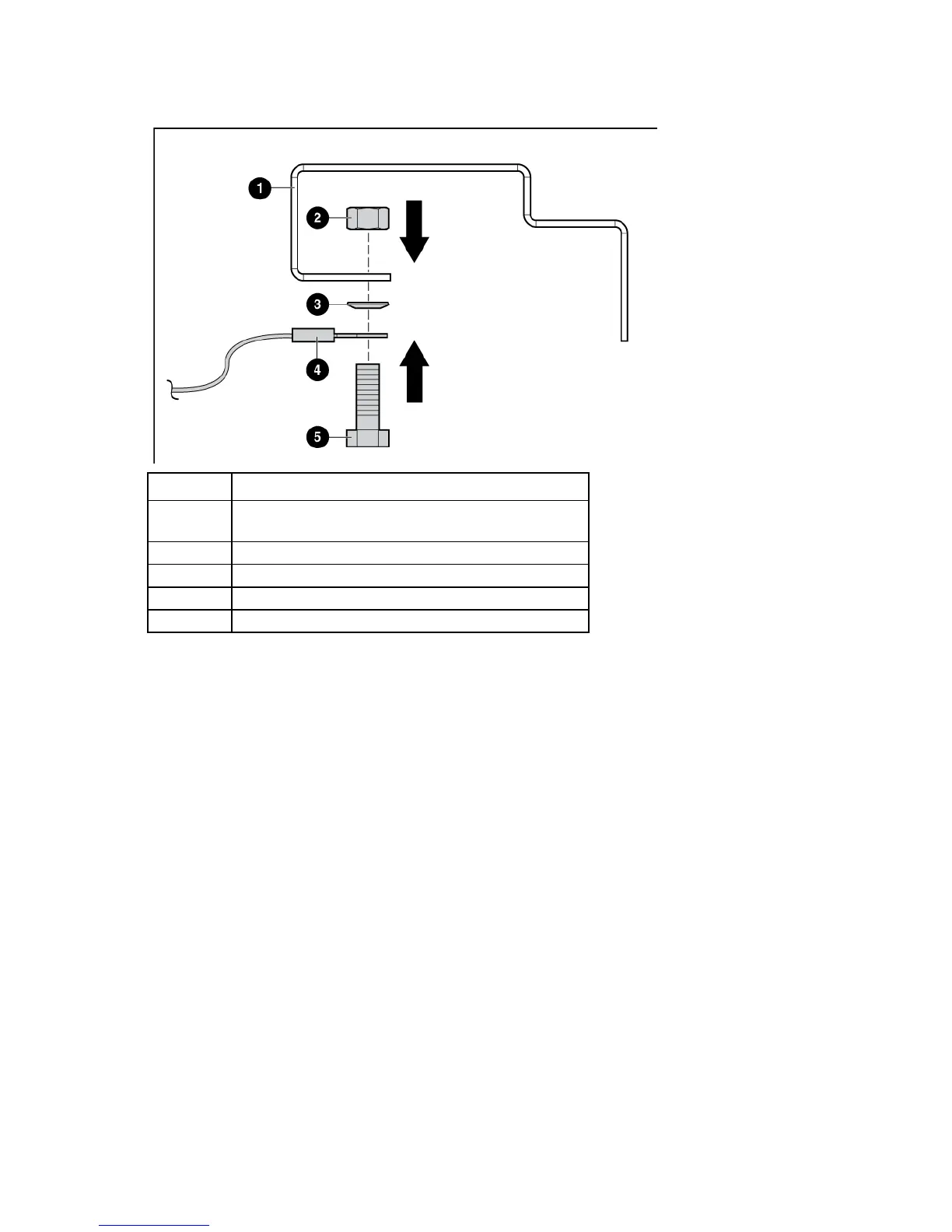

figure illustrates parts for this step.

Reference Item

48.26-cm (19-in) mounting rail (the mounting hole is

located at the top or bottom of the rail)

M8 hex nut

M8 Belleville toothed washer

Facility ground (not included with this kit)

M8 x 20 bolt

Installing the ground bonding rack option kit on HP 10000 G2

Series Rack side panels

From the middle system chassis rail to the bottom side panel:

1. Connect a 36.83-cm (14.5-in) and a 15.24-cm (6-in) grounding strap with connectors together.

2. Insert a T-25 Torx screw through the end of the 36.83-cm (14.5-in) grounding strap, and secure it to the

middle system chassis rail.

3. Place the end of the 15.24-cm (6-in) grounding strap over the grounding lug on the bottom side panel.

4. Place an M8 internal serrated lock washer and an M8 hex nut over the grounding lug on the bottom

side panel and tighten.
