HP 10000 G2 Series - Installing the Cable Management Tray

129 pages

To Next Page

To Previous Page

Cable Management Tray kit 37

Installing the cable management tray

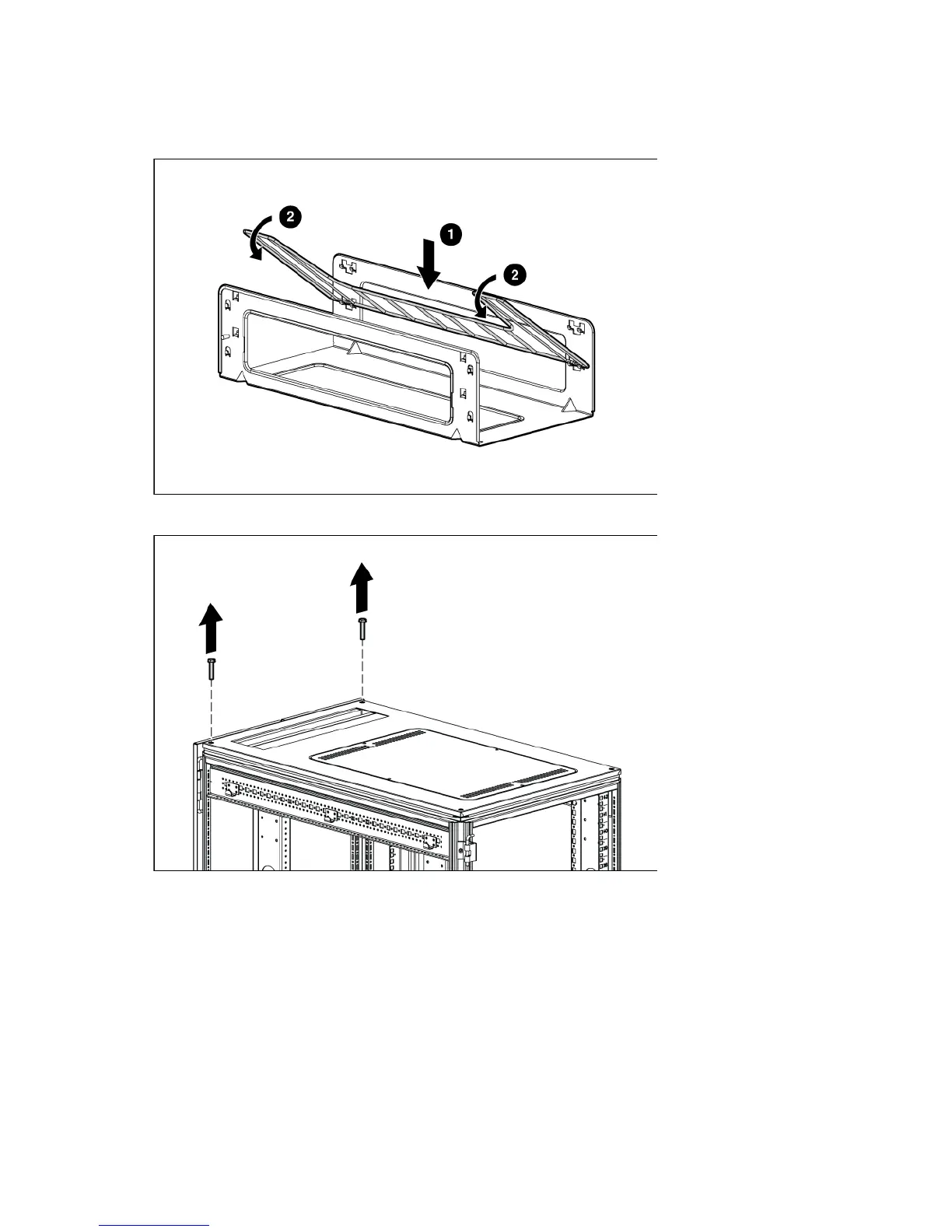

1. Attach the wire for the trough to the cable management tray.

2. Remove the two screws from the rack top.
