100 Kilo Sliding Shelf kit 13

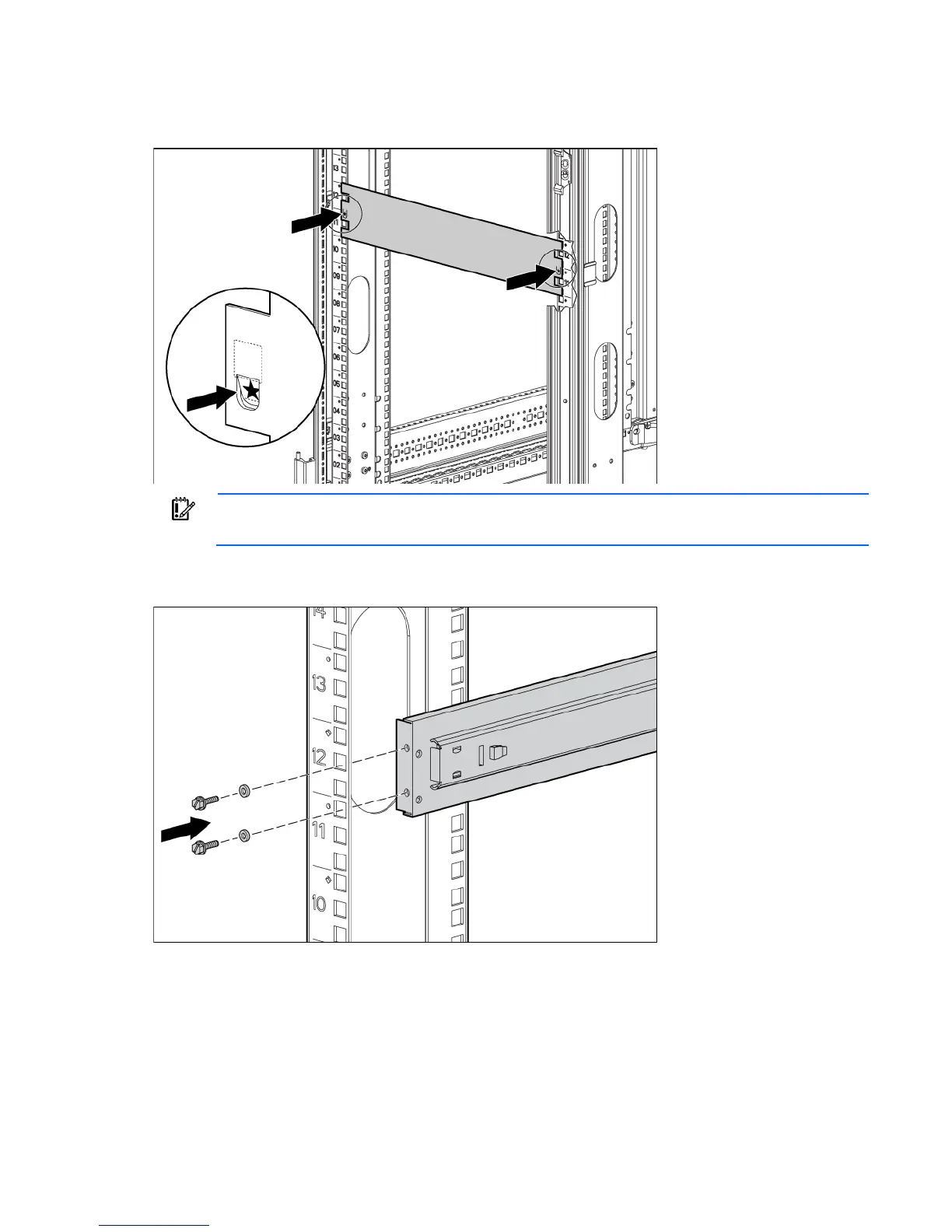

Use the template on the front and rear of the rack frame to mark the attachment points for the sliding

shelf rail assemblies, by measuring from the top of the component installed below the desired position

for the sliding shelf.

IMPORTANT: When using the template on the rear of the rack frame, mark the rack at the top of

the template to help align the next rack component.

2. Align and secure the rear of the left sliding shelf rail assembly to the rear of the rack frame with two M6

x 12 pan HD screws and M6 external washers.
