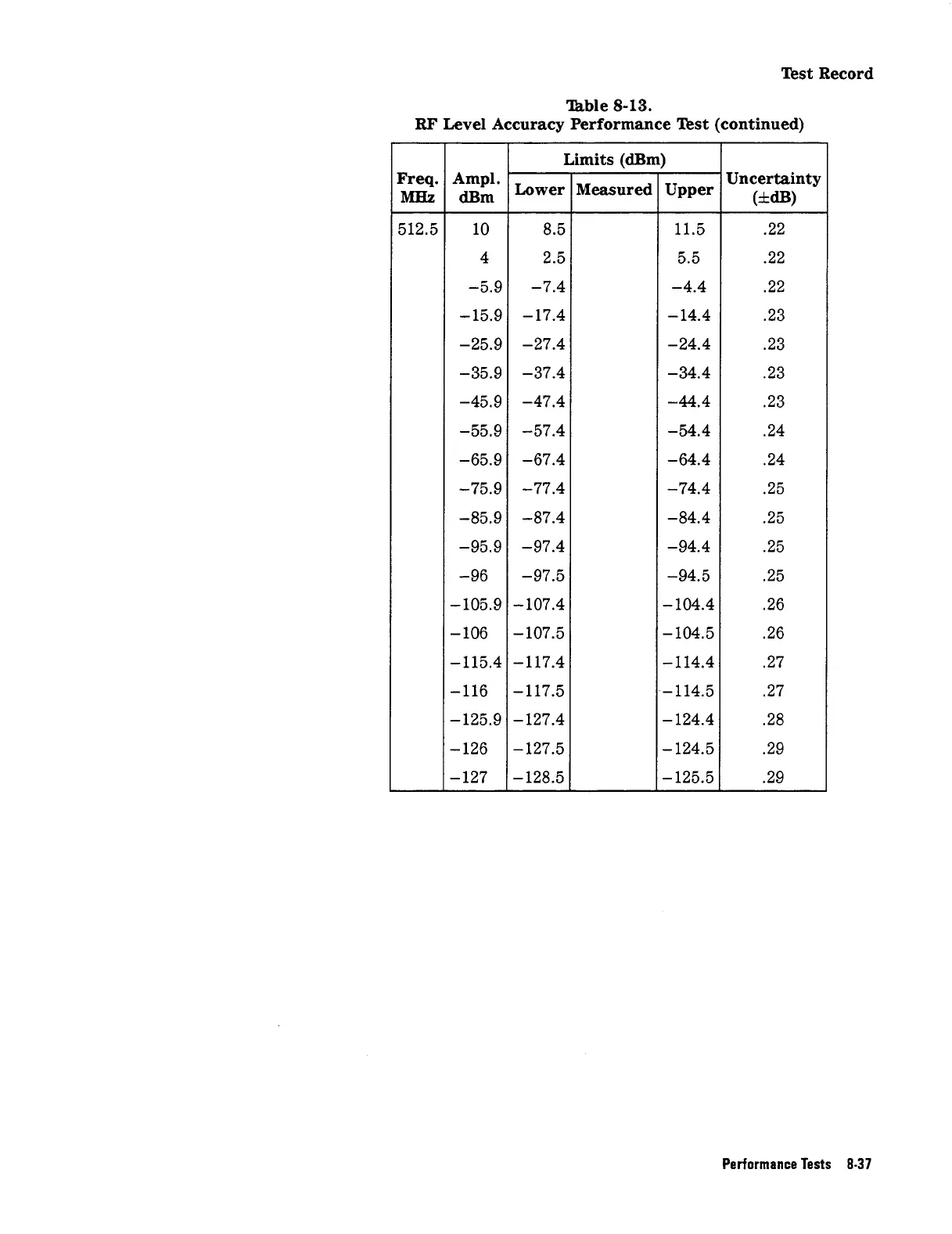

HP 8647A - Page 168

Test Record
'hble
8-13.
RF' Level Accuracy Performance Test (continued)
-
Freq.
MHZ
512.5
-
-
Ampl.
dBm
10
4
-5.9
-15.9
-25.9
-35.9
-45.9
-55.9
-65.9
-75.9
-85.9
-95.9
- 96
-105.9
- 106
- 115.4
-116
-125.9
- 126
- 127
Limits (dBr
Lower
8.5
2.5
-7.4
- 17.4
-27.4
-37.4
-47.4
-57.4
-67.4
-77.4
-87.4
-97.4
-97.5
-107.4
-107.5
-117.4
- 117.5
- 127.4
-127.5
-128.5
Measured
I
Upper
11.5
5.5
-4.4
- 14.4
-24.4
-34.4
-44.4
-54.4
-64.4
-74.4
-84.4
-94.4
-94.5
- 104.4
-104.5
- 114.4
-114.5
- 124.4
- 124.5
- 125.5
Uncertainty
(fa)
.22
.22
.22
.23
.23
.23
.23
.24
.24
.25
.25
.25
.25
.26
.26
.27
.27
.28
.29
.29
Performance Tests 8-37
