180

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

MSMessOrd Message Fields

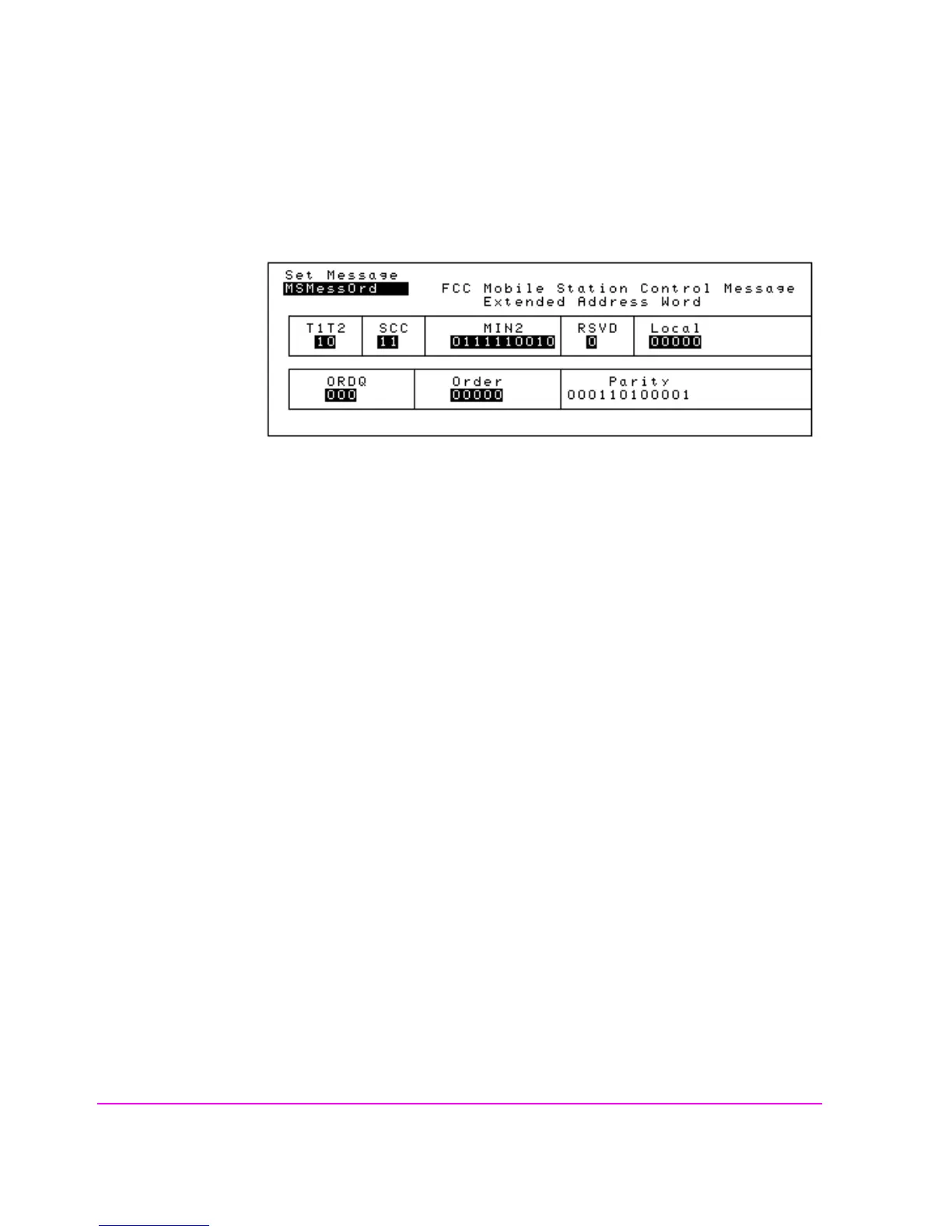

Figure 33 MSMessOrd Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

SCC

SAT color code field.

MIN2

Second part of the mobile identification number field.

RSVD

Reserved for future use, all bits must be set as indicated.
