HP 8921A - The RF Analyzer Screen

419
Chapter 17, RF Analyzer Screen
Field Descriptions
Field Descriptions

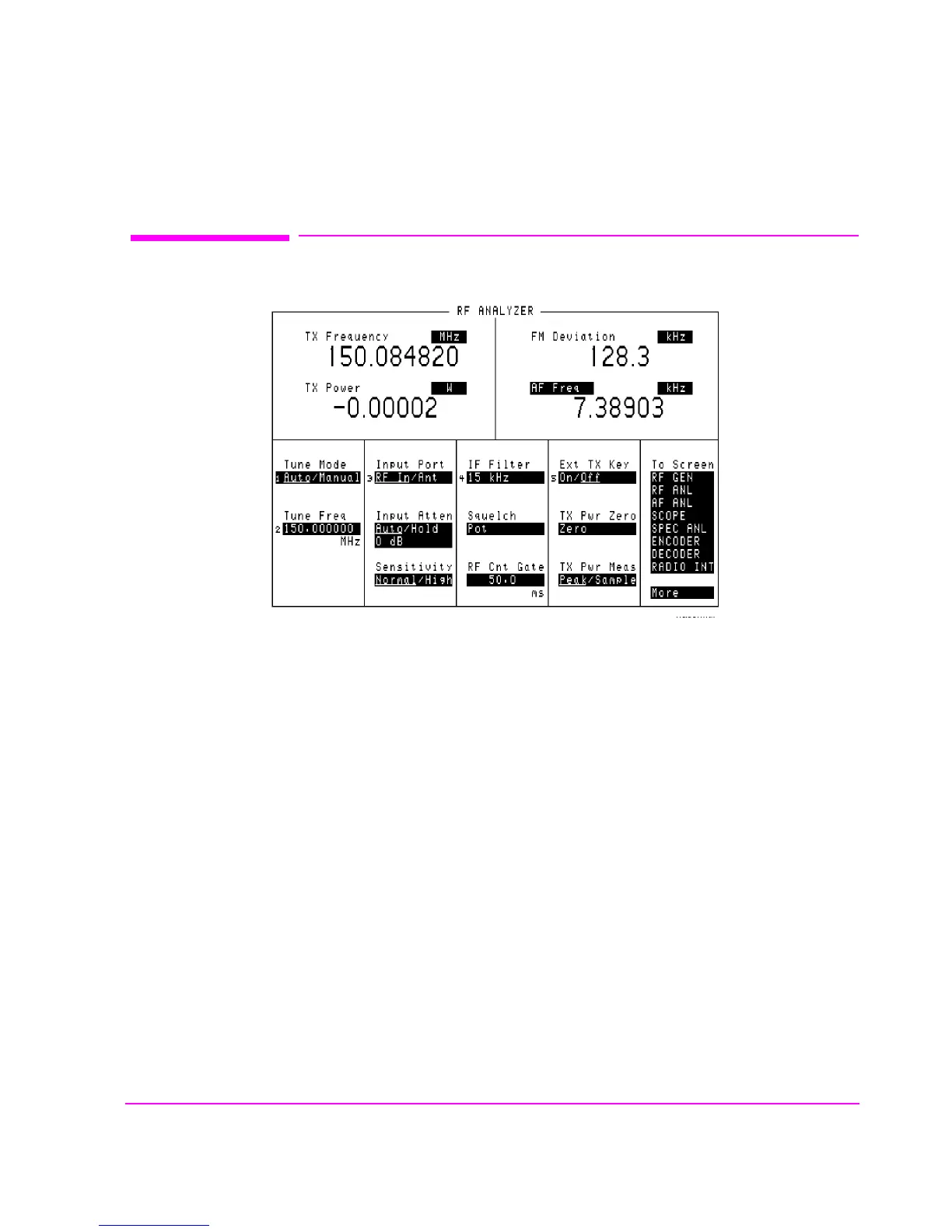

Figure 92 The RF Analyzer Screen
AC Level
This is the default measurement for this field. The type of measurement listed here
is dependent on the AF Anl In settings.
See Also
AC Level
field description, on page 442
AF Anl In
field description, on page 97
"Displaying Measurements" on page 57
AM Depth
This field displays the percent depth of modulation of the AM signal. The field is
only visible when the AF ANL In field on the AF ANL screen is set to AM MOD or
AM DEMOD.
