HP 8921A - Reading Measurement Results at the Spectrum Analyzer’s Markers

460
Chapter 21, Spectrum Analyzer Screen
Field Descriptions
Marker Measurements

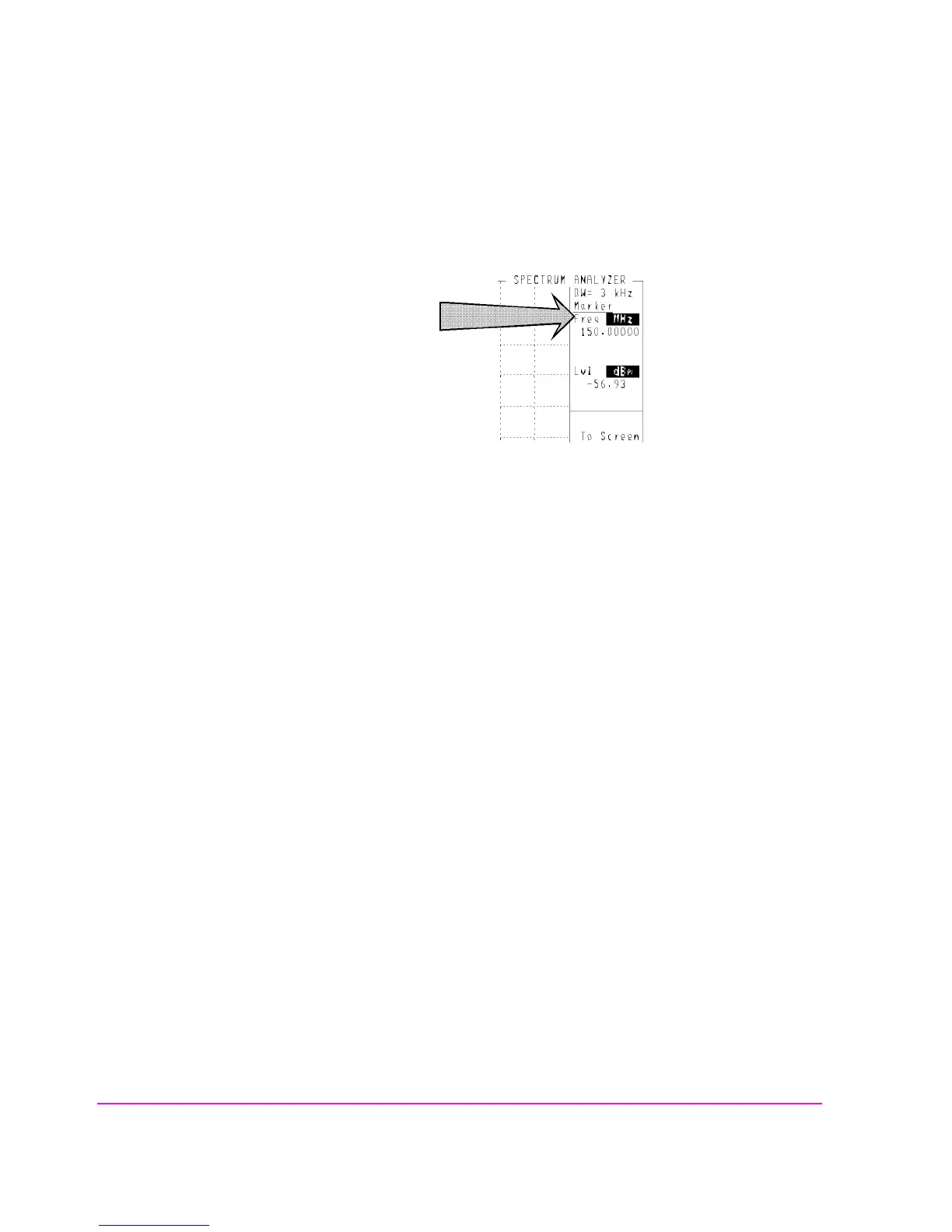

Figure 102 Reading Measurement Results at the Spectrum Analyzer’s Markers
Marker: Freq
Marker frequency displays the frequency at the marker’s present position.
Marker: Lvl
Marker level displays the amplitude at the marker’s present position.
Operating Considerations
The marker’s level can be displayed in various units of measure.
See Also
"To Change the Measurement’s Unit-of-Measure" on page 61
