Chapter 22, Tests Screen

TESTS (Printer Setup)

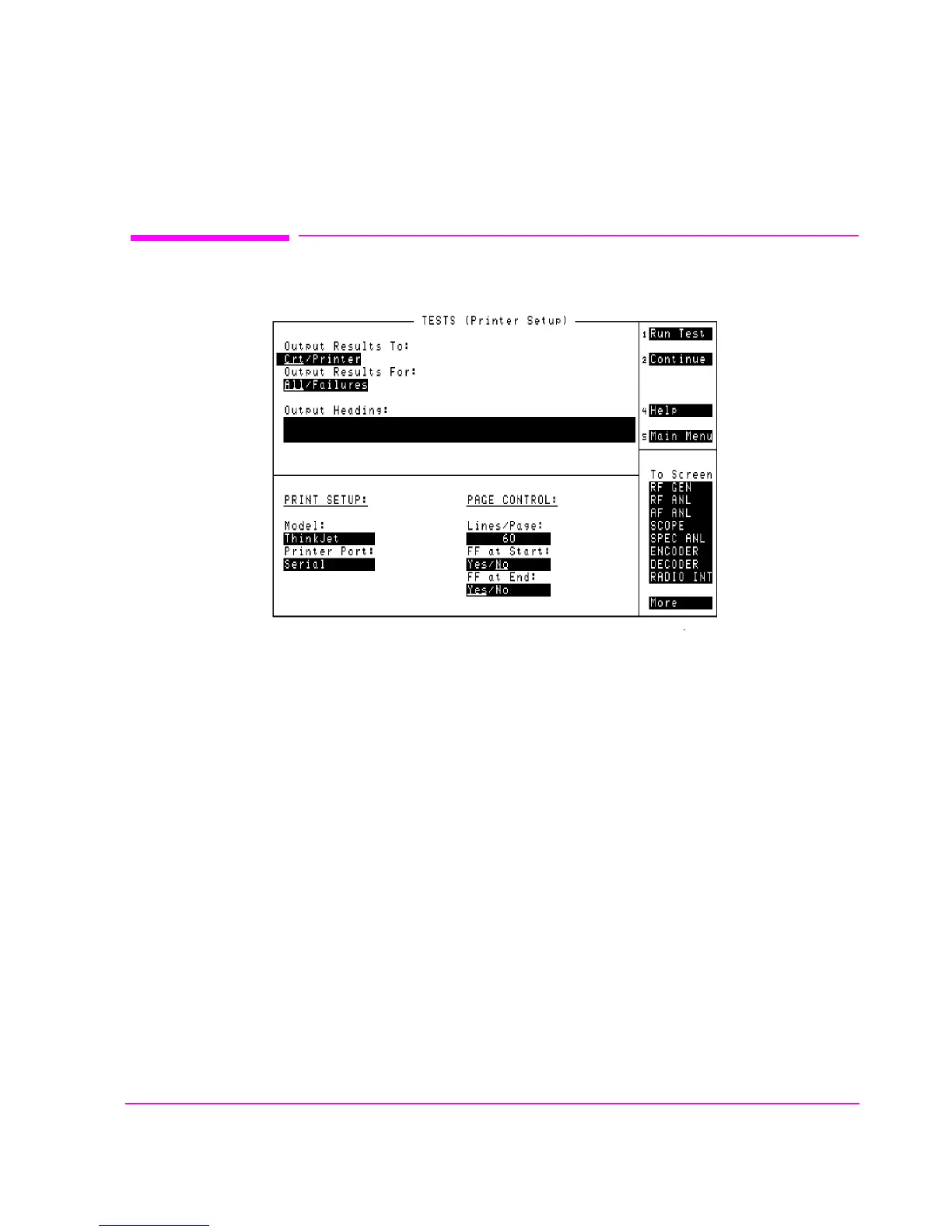

Figure 112 The TESTS (Printer Setup) Screen

The TESTS (Printer Setup) screen determines how tests are run.

Continue

This field is used to restart a paused test.

FF at End:

This field can only be controlled programmatically. It is used to specify if you

want a form feed at the end of printing. The underlined entry is the active choice.

FF at Start:

This field can only be controlled programmatically. It is used to specify if you

want a form feed at the start of printing. The underlined entry is the active choice.
