HP 8921A - Message (FOCC)

307
Chapter 10, Signaling Encoder (AF Generator 2)
AMPS-TACS NAMPS-NTACS Encoder
Message (FOCC)

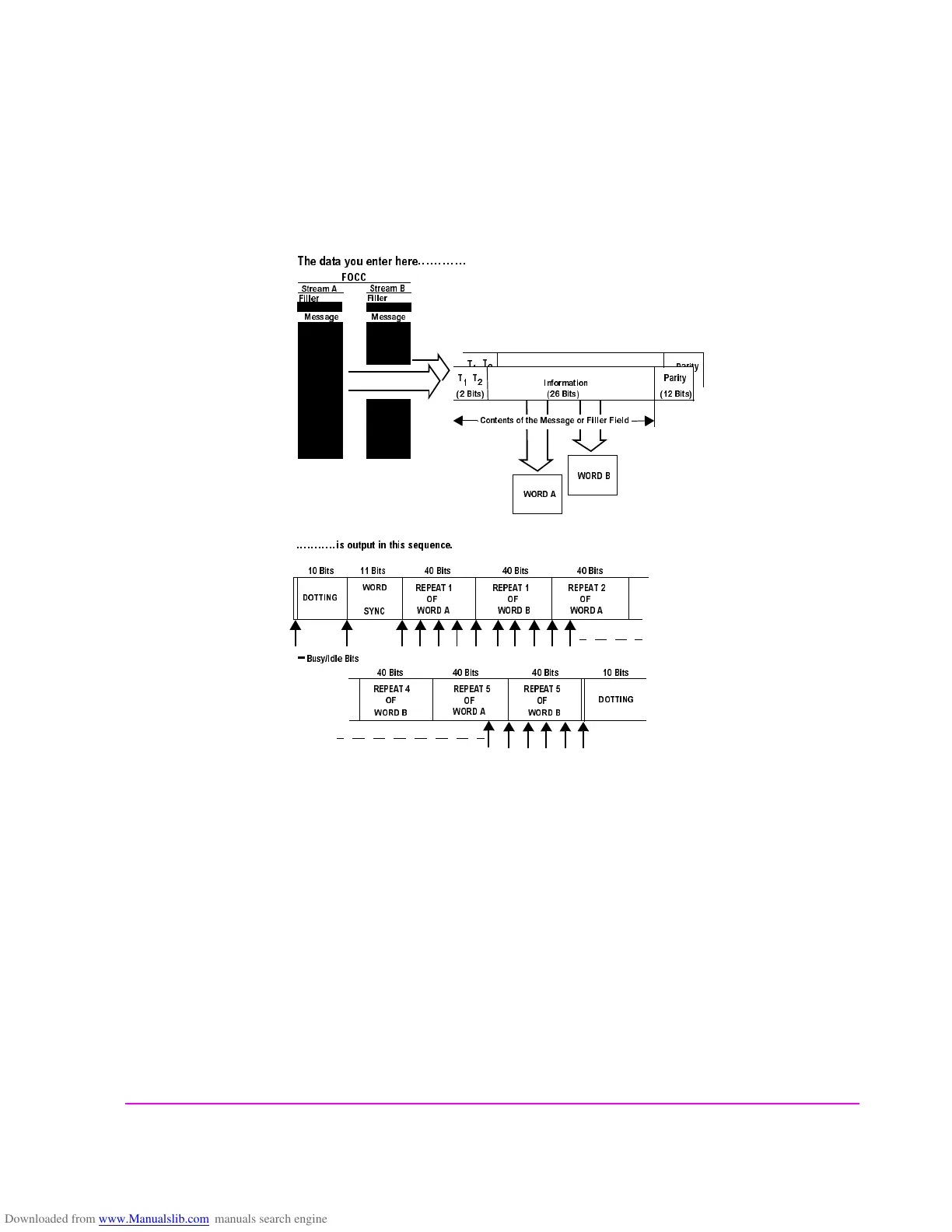

Figure 60 AMPS-TACS/NAMPS-NTACS FOCC Message and Filler Data Format
Message streams A and B specify various forward control channel parameters.
Operating Considerations
Like the filler information, the message information can only be input in full
(seven digit) lines. Also, message streams A and B must have the same number of
lines in them.
