HP 8921A - The NMT Decoder Screen

263
Chapter 8, Signaling Decoder Screen
NMT Decoder

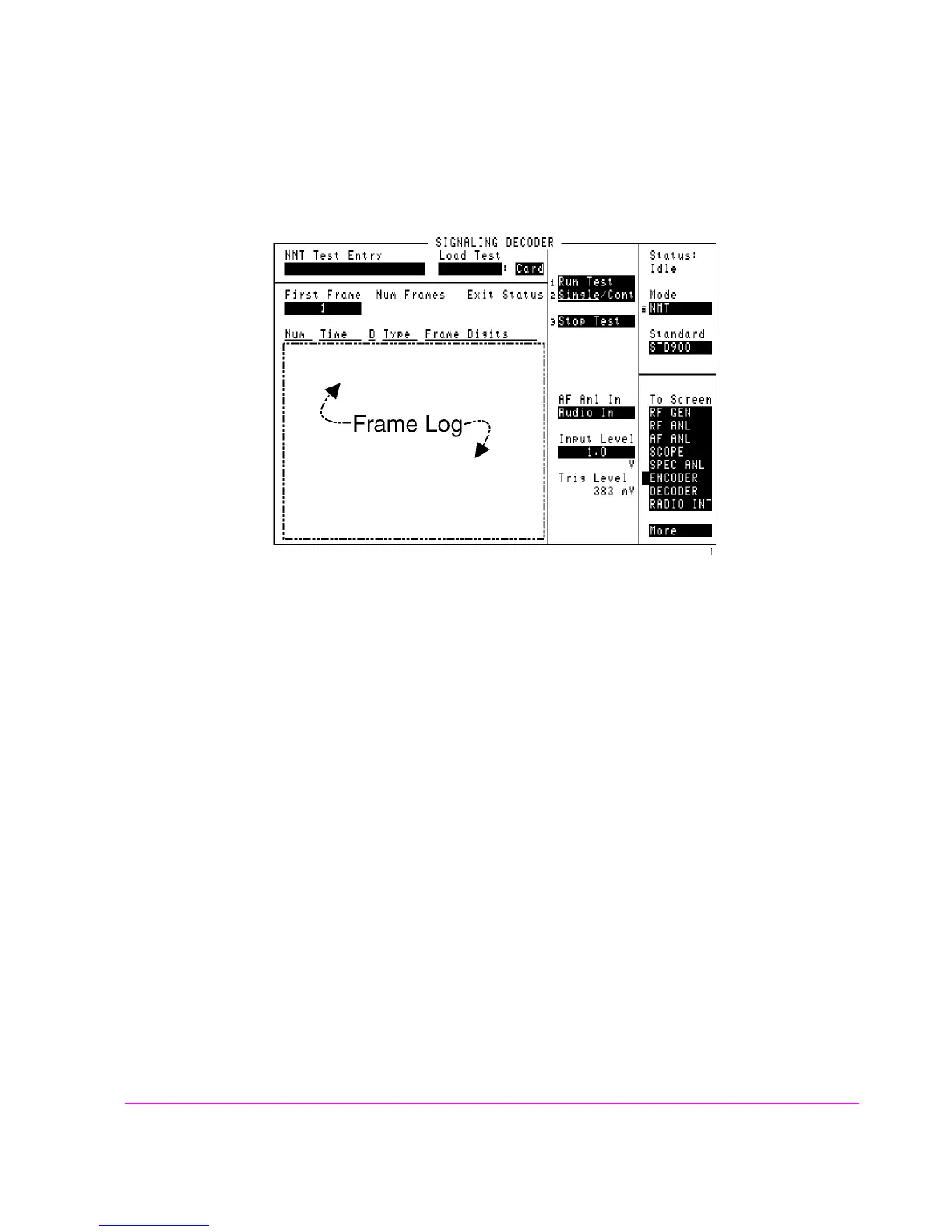

Figure 52 The NMT Decoder Screen
AF Anl In
Audio frequency analyzer input selects the input for the analyzer. When selected,
this field displays a list of choices:
• The output of the AM, FM, or SSB demodulators.
• The AUDIO IN, RADIO INTERFACE, MODULATION INPUT, MIC/ACC, and AU-
DIO OUT connectors.
• The signal present at the AM or FM modulators for the RF Generator.
See Also
"Interaction Between Screens" on page 54
"Displaying Measurements" on page 57
Exit Status
This field indicates which EXIT n command caused the program to stop running.
See Also
EXIT n command in the "Program Command Syntax" on page 277.
