4. Complete the Network Connections
to the Hub
Reconnect the hub to the power source and then make the
network connections to the hub. (For the Hub-24 and Hub-48, see the
documentation accompanying the Redundant Power Supply if you are
using redundant power.) Typical hub connections are to:
network devices such as computers, and printers
a network backbone
another HP AdvanceStack 10Base-T Hub, or other Ethernet hub
Some examples of connections that can be made to your hub are shown
below. Specific details about connecting your network cabling to the
hub’s ports are included later in this chapter.

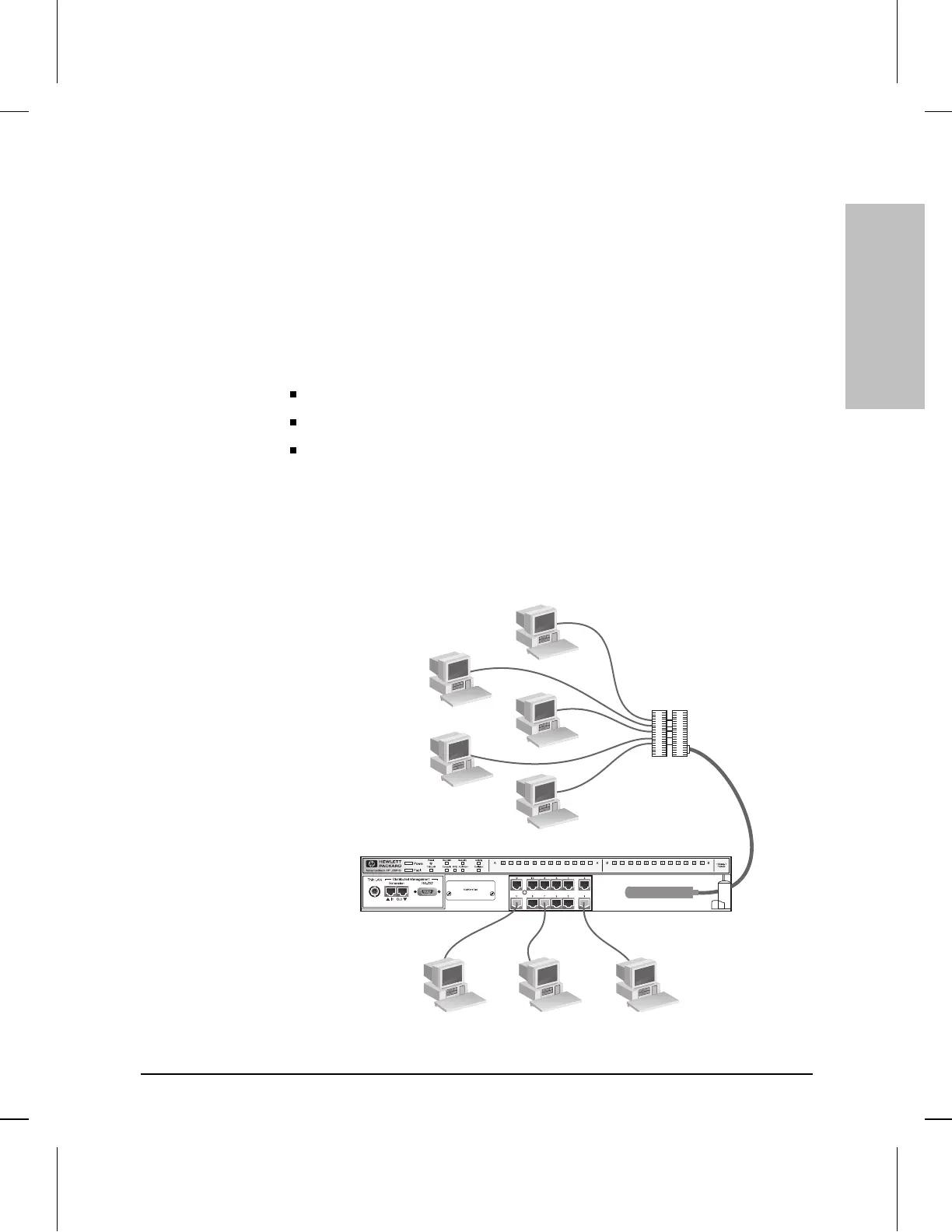

Connecting Computers and Other Devices
Devices connected to the hub’s
50-pin telco connector through a
cross-connect block
Devices connected directly to a
50-pin/RJ-45 adapter on the hub
Installing the
HP AdvanceStack Hubs
Installing the HP AdvanceStack 10Base-T Hubs
1-11
