Connectors, Jumpers, and Switches
5-7
CD-ROM or DVD-ROM Drive
CSM
SLA
CSM
SLA
CSM
SLA
Use CSEL Slave Master

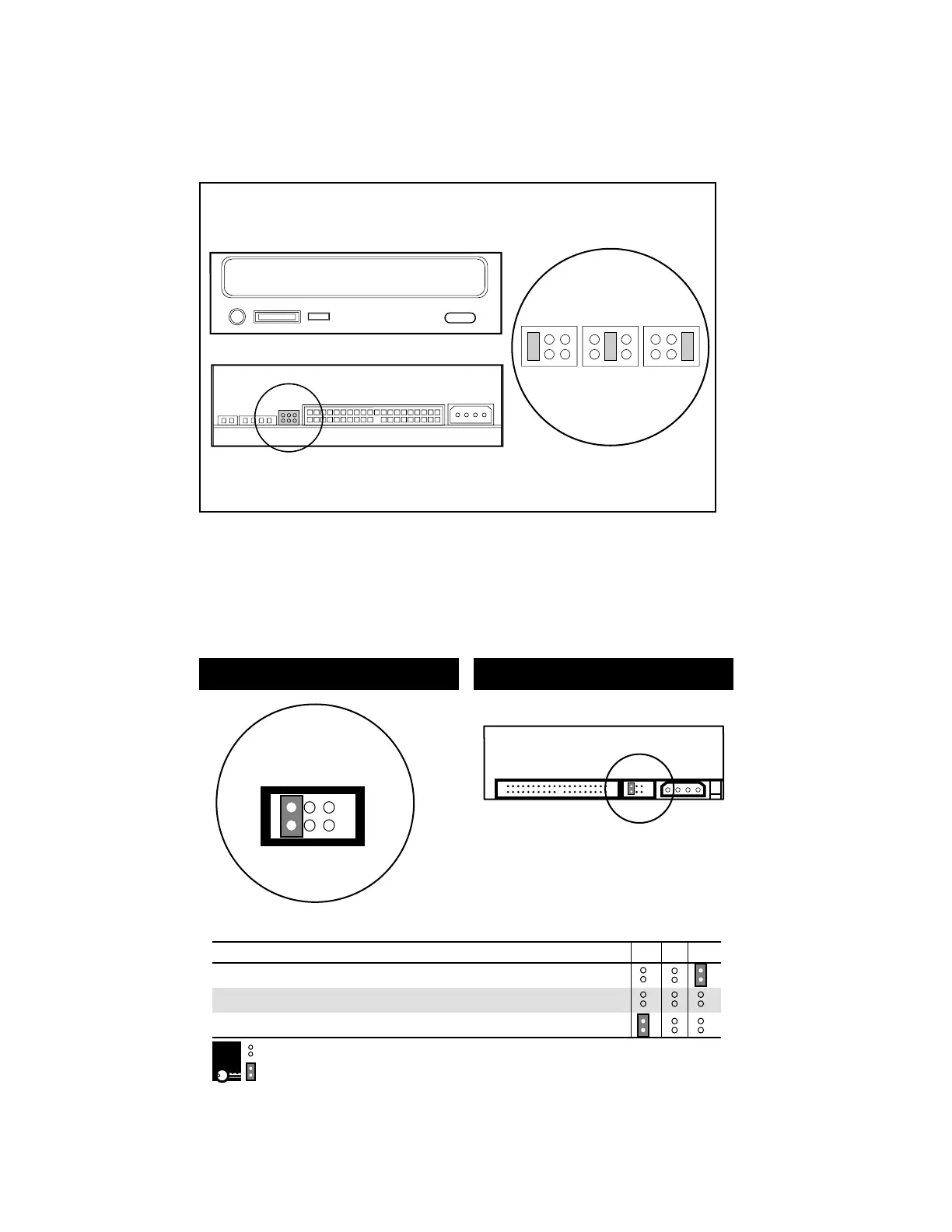

Figure 5-5. Locating the jumper positions for the 40X Max CD-ROM drive (IDE) or the
DVD-ROM drive
Zip Drive
The jumper positions for the 100- and 250-MB Zip drives are identical.
100 MB
Drive Size:
Zip Drive
Model:
Default
Setting
Jumper Setting
for Cable Select
Note: After changing the jumper settings, reboot the
computer so the new address will be recognized.
Jumper NOT Installed
Jumper Installed
Key
Configuration
Device 0 (Master)
Device 1 (Slave)
Cable Select (Default)
IDE Settings
Figure 5-6. Locating the jumper position for the 100- and 250-MB Zip drive
