Removal and Replacement Procedures
4-5
Side Access Panel
CAUTION:
Do not operate the workstation with the side access panel removed. The panel is an
integral part of the cooling system; removing it while the system is running may adversely
affect data integrity.
To remove the side access panel:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Loosen the four rear panel thumbscrews and slide off the access panel.

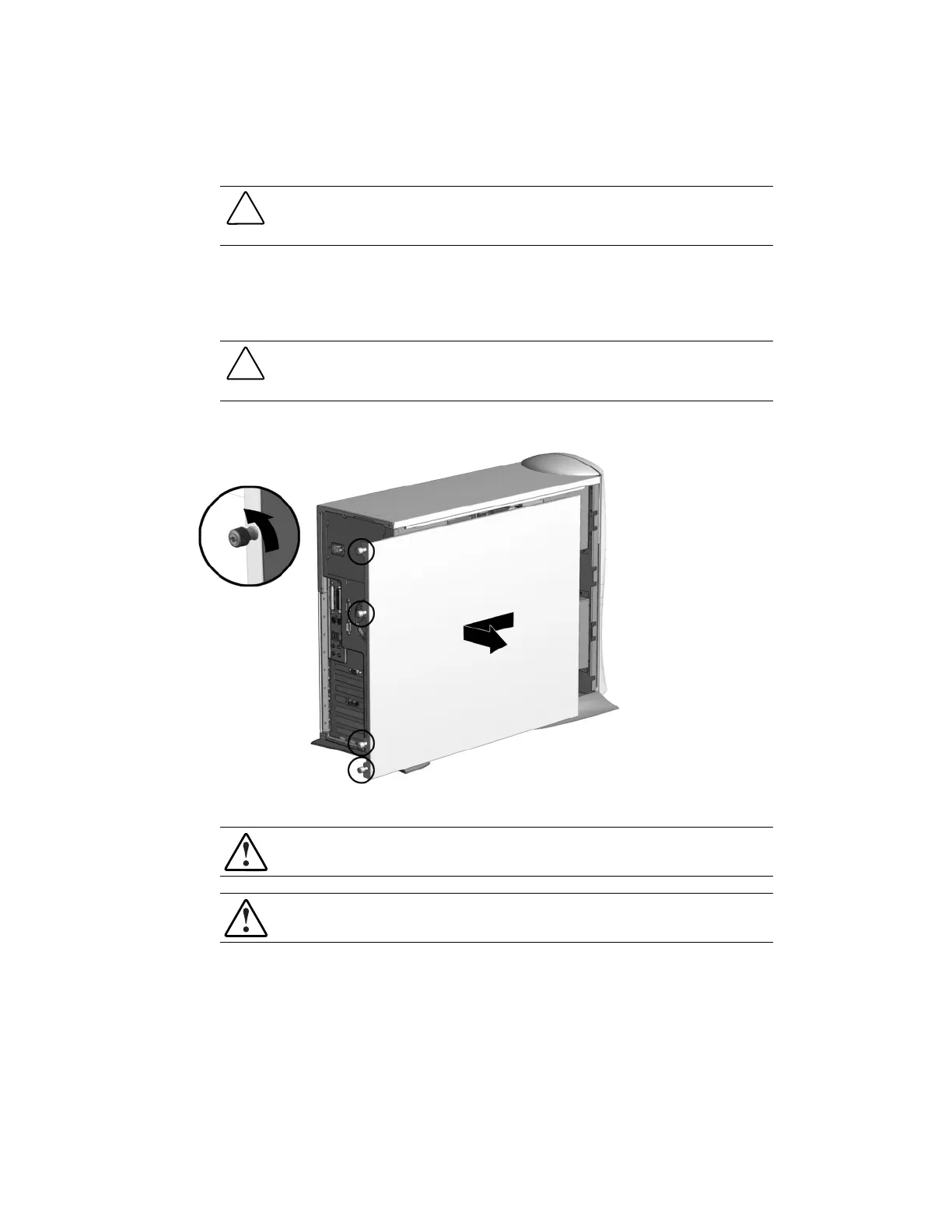

Figure 4-3. Loosening the thumbscrews and removing the side access panel
WARNING:
To reduce the risk of personal injury from hot surfaces, allow the internal system
components to cool before touching them.
WARNING:
When replacing the side access panel, be sure to tighten all four thumbscrews.
To replace the side access panel, reverse the above procedure.
