Removal and Replacement Procedures
4-31
Removing a Memory Board
To remove a memory board:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the side access panel and locate the memory board in the memory board
connector
1
on the workstation system board.

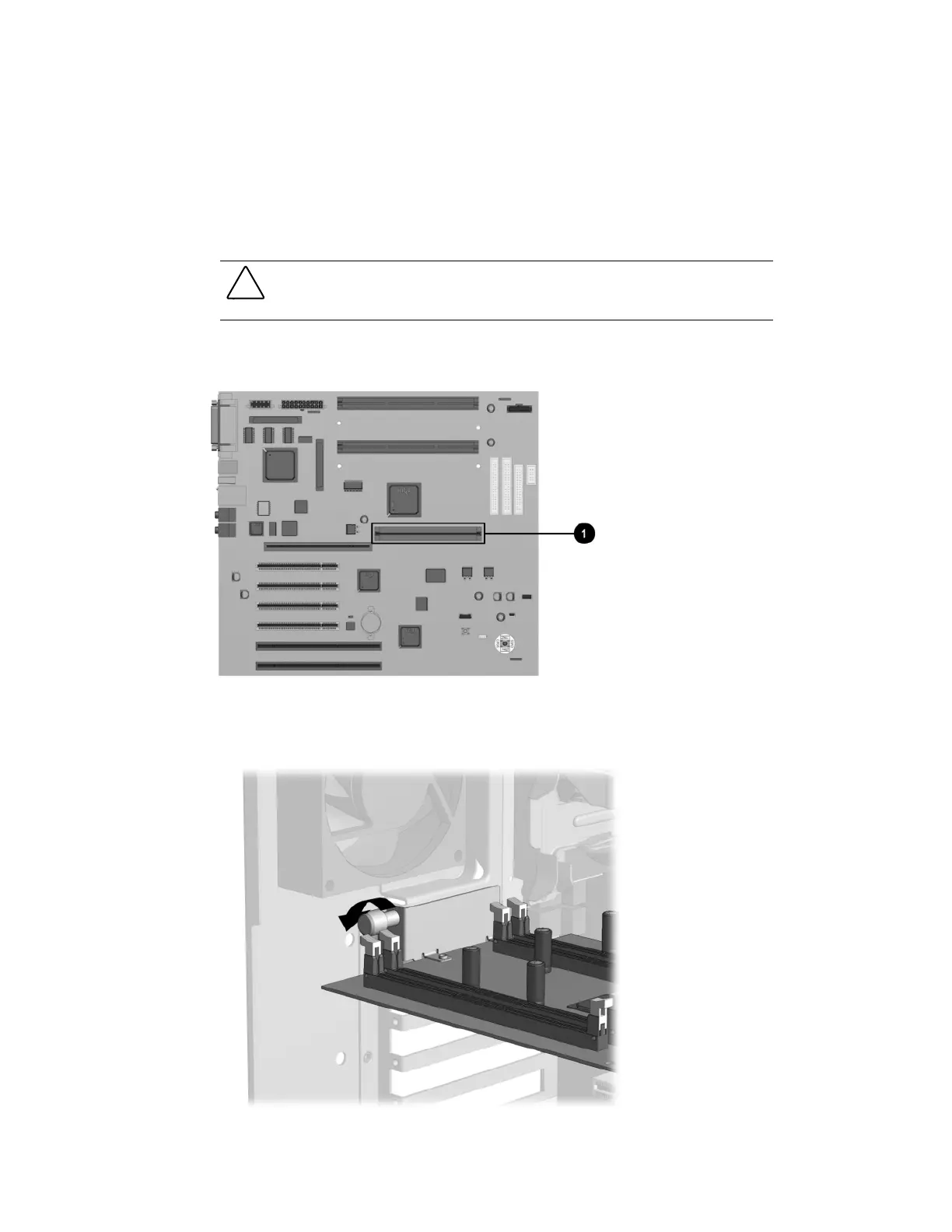

Figure 4-30. Locating the memory board connector on the system board
3. Loosen the thumbscrew on the back of the metal slot cover that secures the memory board
to the expansion slot.
Figure 4-31. Loosening the thumbscrew on the back of the metal slot cover
