Compaq Professional Workstation SP750 Maintenance and Service Guide
Installing a Memory Board
To install a memory board:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the side access panel and locate the memory board that is connected to the
workstation system board.
3. Place the memory board into the memory board connector on the system board.
IMPORTANT:
When installing a memory board, press firmly on the board so that the whole connector
seats properly in the memory board slot. After you install the memory board, make sure the board is
engaged with the card guide.
4. Tighten the thumbscrew on the memory board metal slot cover.

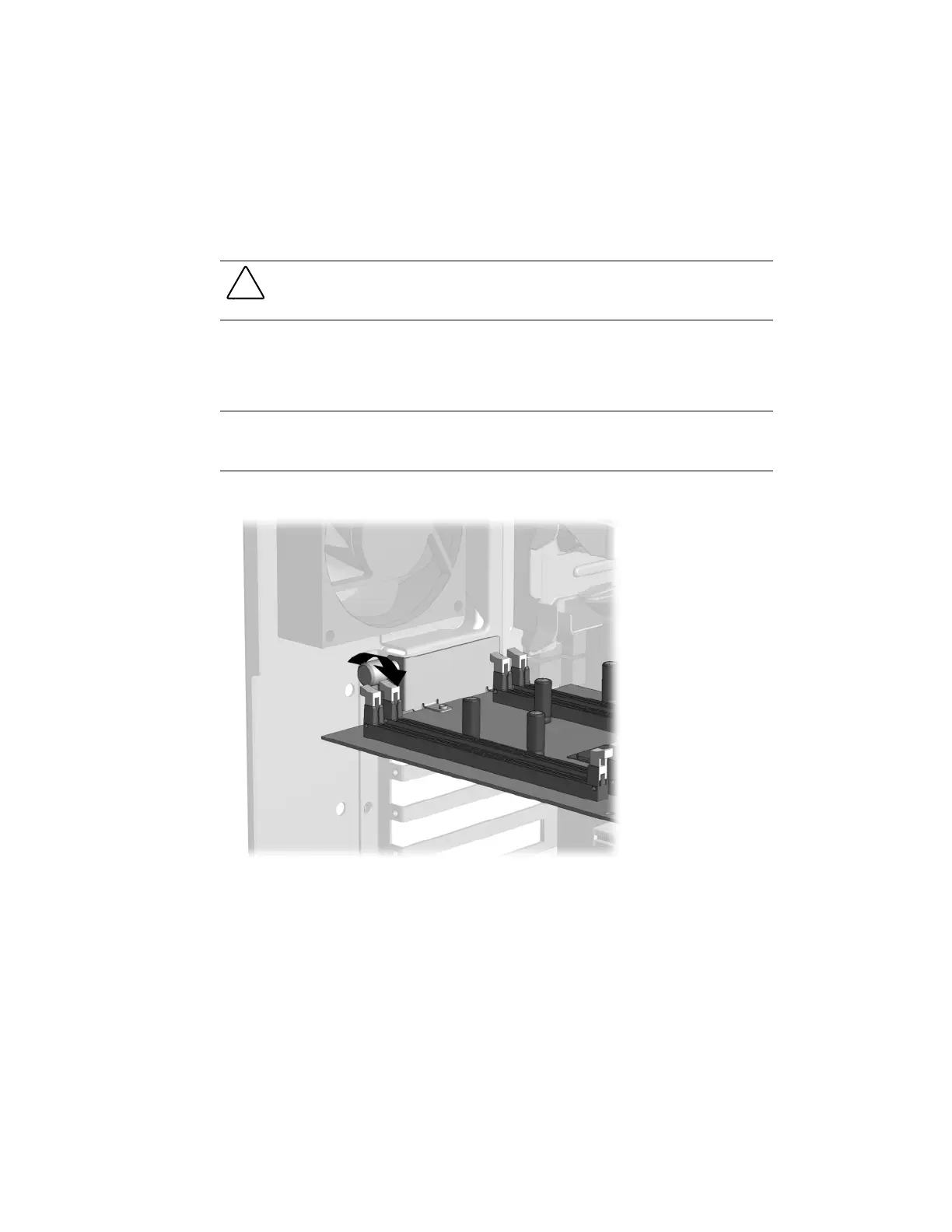

Figure 4-35. Tightening the thumbscrew to secure the memory board
5. Replace the side access panel.
6. Plug the network cable back into the system. Reconnect external devices. Plug the power
cord back into the grounded AC outlet.
