4-26
Compaq Professional Workstation SP750 Maintenance and Service Guide
Expansion Boards
This section discusses removal and replacement procedures for PCI expansion boards.
NOTE:
The following instructions also apply to installing and removing graphics controllers. Additional
information on your graphic controllers may be found on the Workstation Reference Library CD.
The Compaq Professional Workstation SP750 contains four 32-bit/33-MHz and two
64-bit/66-MHz PCI expansion slots. The following figure identifies the physical locations of
these slots. See Table 4-3 for component names.

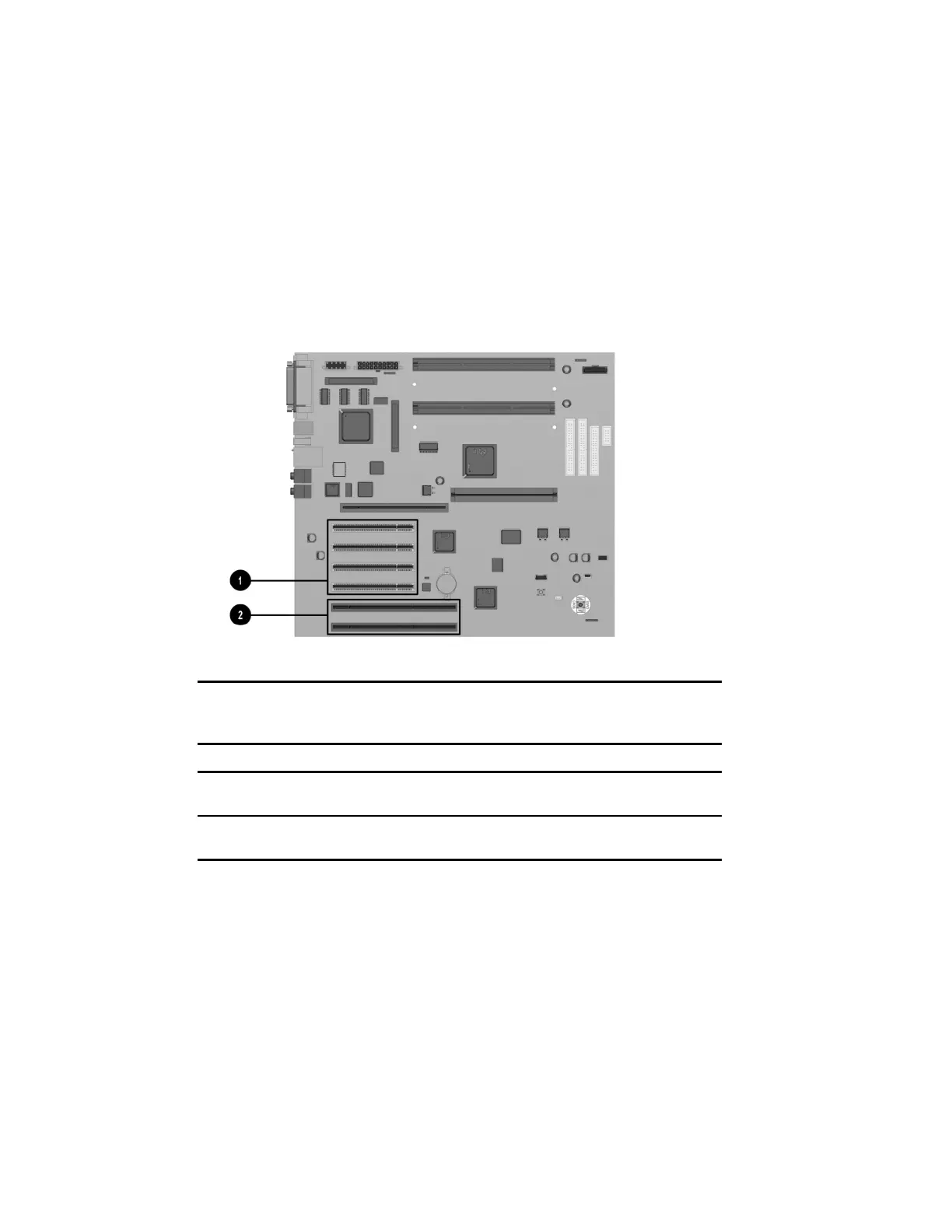

Figure 4-26. Identifying PCI expansion slots
Table 4-3
PCI Expansion Slots
Item Component Bus Location
1
Four 32-bit/33-MHz PCI
expansion slots
Primary bus
2
Two 64-bit/66-MHz PCI
expansion slots
Secondary bus
