Compaq Professional Workstation SP750 Maintenance and Service Guide
Accelerated Graphics Port Controller
The workstation ships standard with a graphics controller installed in the Accelerated Graphics
Port (AGP) graphics controller slot. The following figure shows the location of the AGP
graphics controller slot.

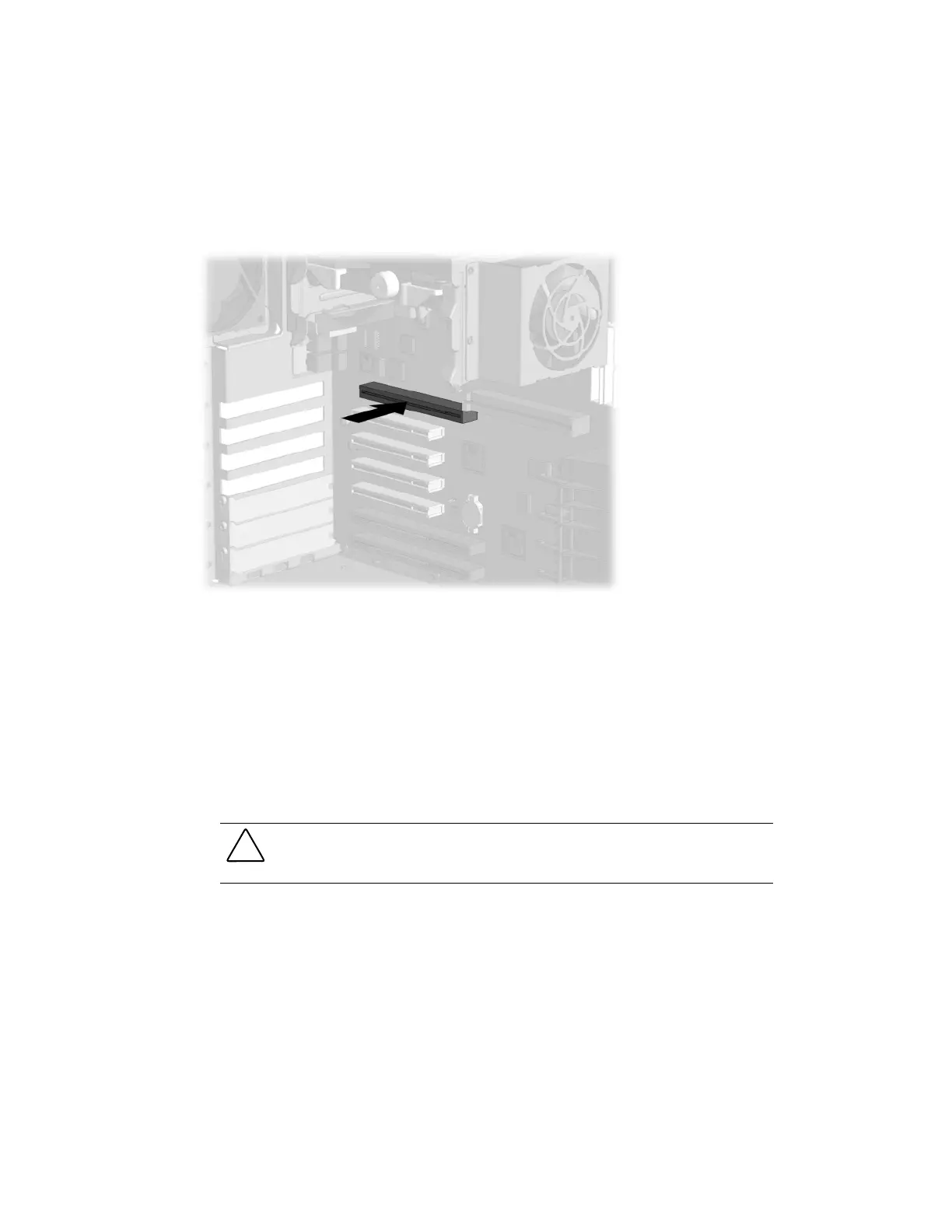

Figure 4-36. Identifying the AGP Pro graphics controller expansion slot
NOTE:
AGP Pro specifications allow an AGP Pro card to occupy up to two adjacent PCI slots, with
additional components or cards, on your workstation system board.
Removing an AGP Graphics Controller
To remove the AGP graphics controller:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the side access panel.
3. Disconnect any cables attached to the controller.
4. Remove the screw that secures the controller.
