Compaq Professional Workstation SP750 Maintenance and Service Guide
Installing an Expansion Board
To install a PCI expansion board:
1. Turn off the workstation and disconnect the power cord from the grounded AC outlet and
the back of the workstation. Disconnect the network cable and any external devices from
the system.
2. Remove the side access panel and locate the correct vacant PCI slot.
3. Remove the screw securing the expansion slot cover, then remove the slot cover, as
illustrated.

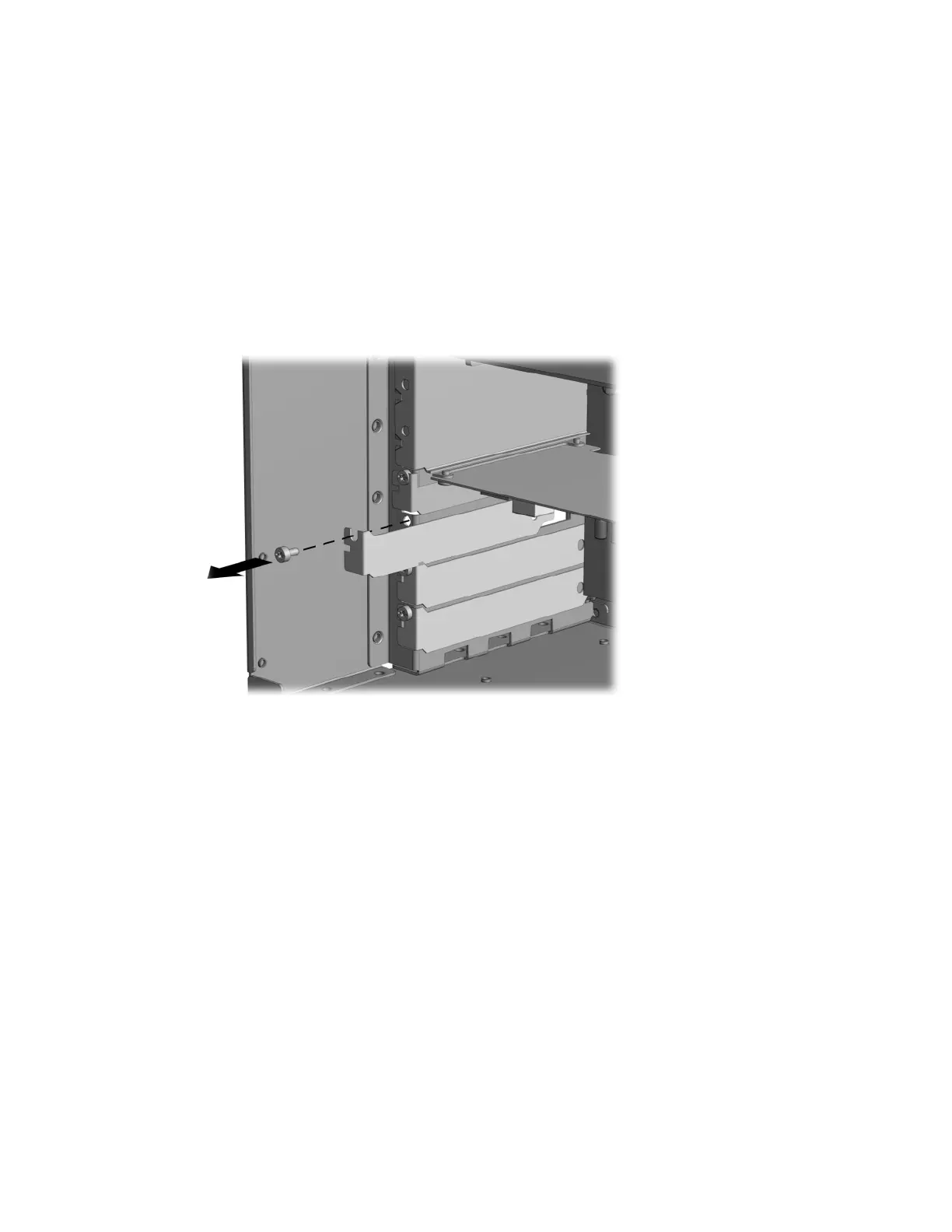

Figure 4-28. Removing the screw and expansion slot cover
To replace an expansion slot cover, reverse the above procedure.
