Removal and Replacement Procedures
4-45
Speaker
To remove the speaker:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the side access panel.
3. Unplug the speaker connector from the system board and remove the cable from the clip.
4. Remove the four T-15 screws securing the front of the speaker to the chassis.
5. Remove the speaker from the workstation by sliding it back, then lifting it up and out of
the chassis.

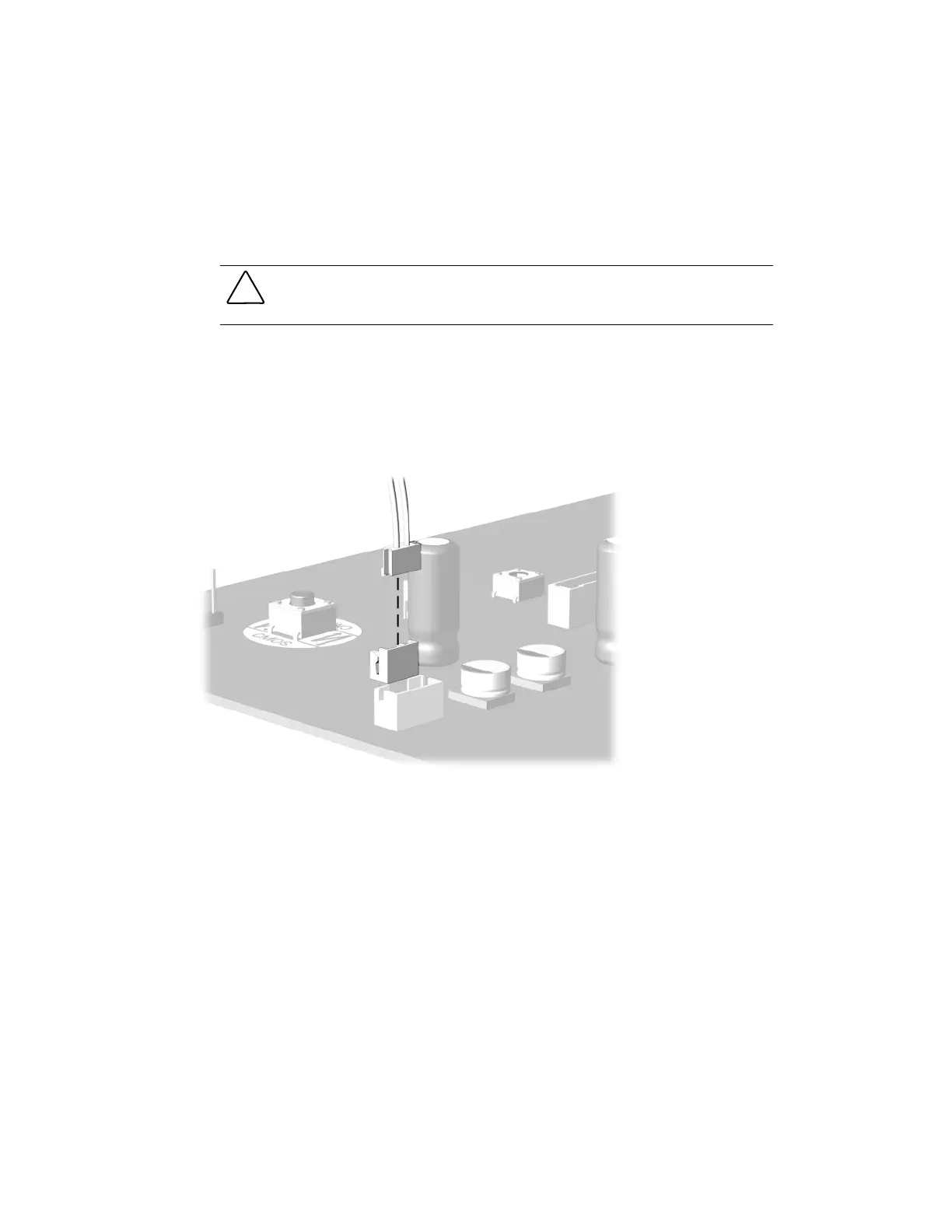

Figure 4-40. Unplugging the speaker connector from the system board
