Removal and Replacement Procedures
4-13
CD-ROM Drive
NOTE:
This procedure also applies to removing a DVD-ROM drive.
To remove the CD-ROM or DVD-ROM drive:
1. Perform the steps in the “Service Preparations” section in this chapter, then place the
workstation on its side.
CAUTION:
Before removing the side access panel, ensure that the workstation is turned off, all
cables are disconnected from the back of the workstation, and the power cord is disconnected
from the grounded AC outlet.
2. Remove the following components:
Y
Side access panel
Y
Front bezel
3. Remove the two screws securing the right side of the drive.
4. Slide the drive slightly out of the drive cage.
5. Disconnect all cables from the rear of the CD-ROM drive.
6. Pull the drive straight out of the chassis.

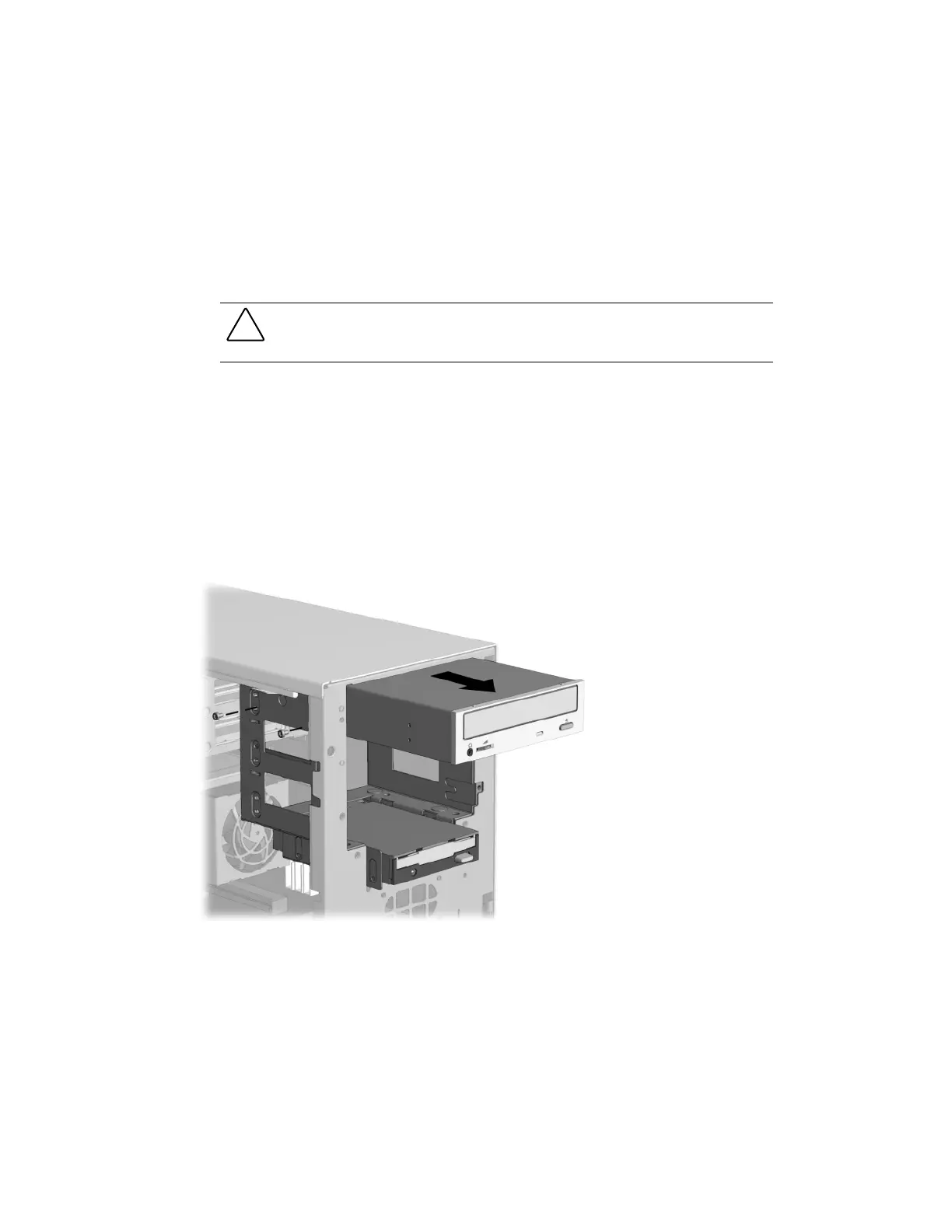

Figure 4-10. Removing the screws and sliding the CD-ROM drive out of the drive cage
