Removal and Replacement Procedures
4-29
4. Slide the expansion board into the expansion slot and press the board firmly into place.

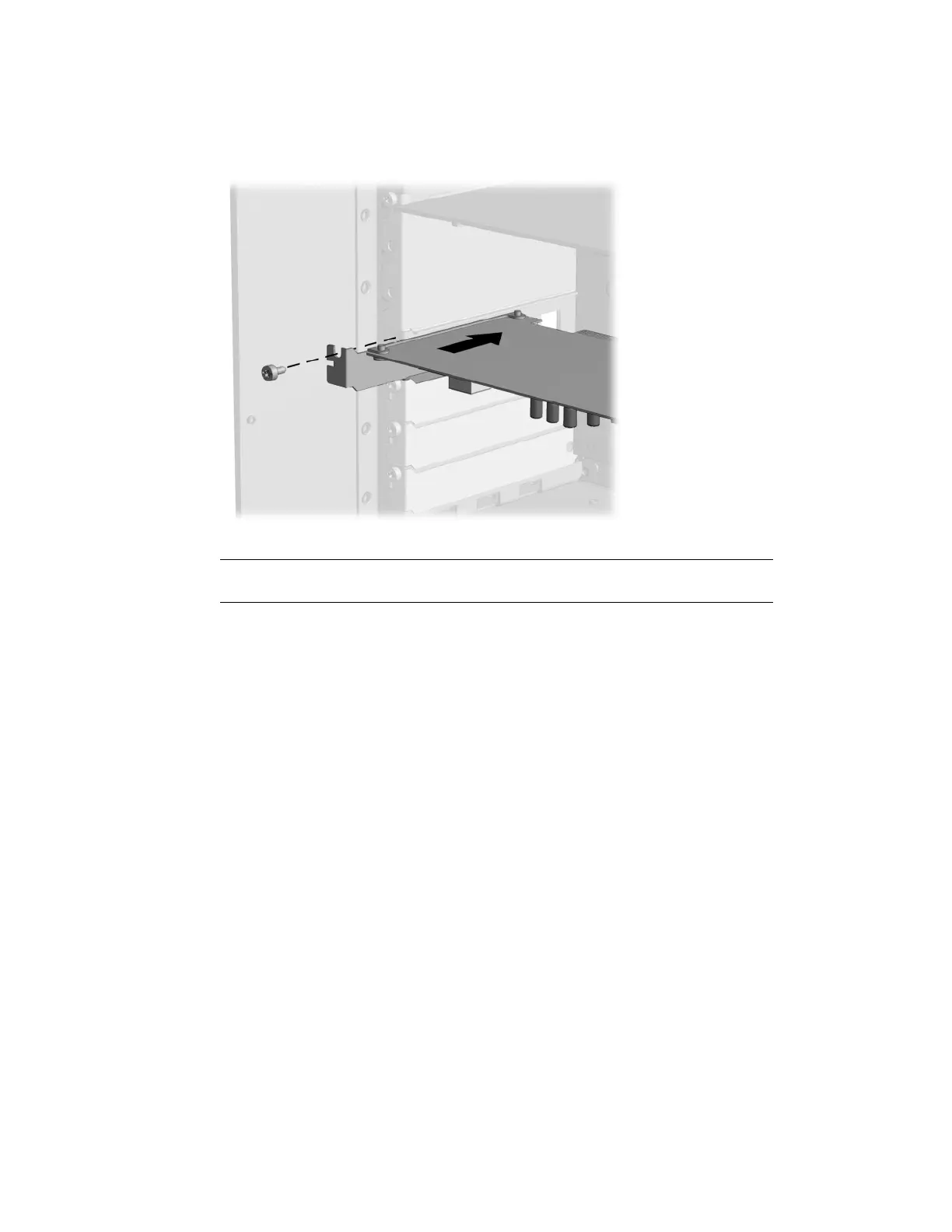

Figure 4-29. Installing an expansion board
IMPORTANT:
When installing an expansion board, press firmly on the board so that the whole connector
seats properly in the expansion board slot.
NOTE:
If you are installing a full-length PCI board, make sure the card is engaged with the card guide.
5. Replace the screw at the side of the expansion slot.
6. Replace the side access panel.
7. Connect external cables to the installed board, if necessary.
8. Plug the network cable back into the system. Reconnect external devices. Plug the power
cord back into the grounded AC outlet.
