Compaq Professional Workstation SP750 Maintenance and Service Guide
Rear Panel Connectors
The following figure illustrates the location of the external connectors and jacks. See Table 1-2
for a description of each connector.

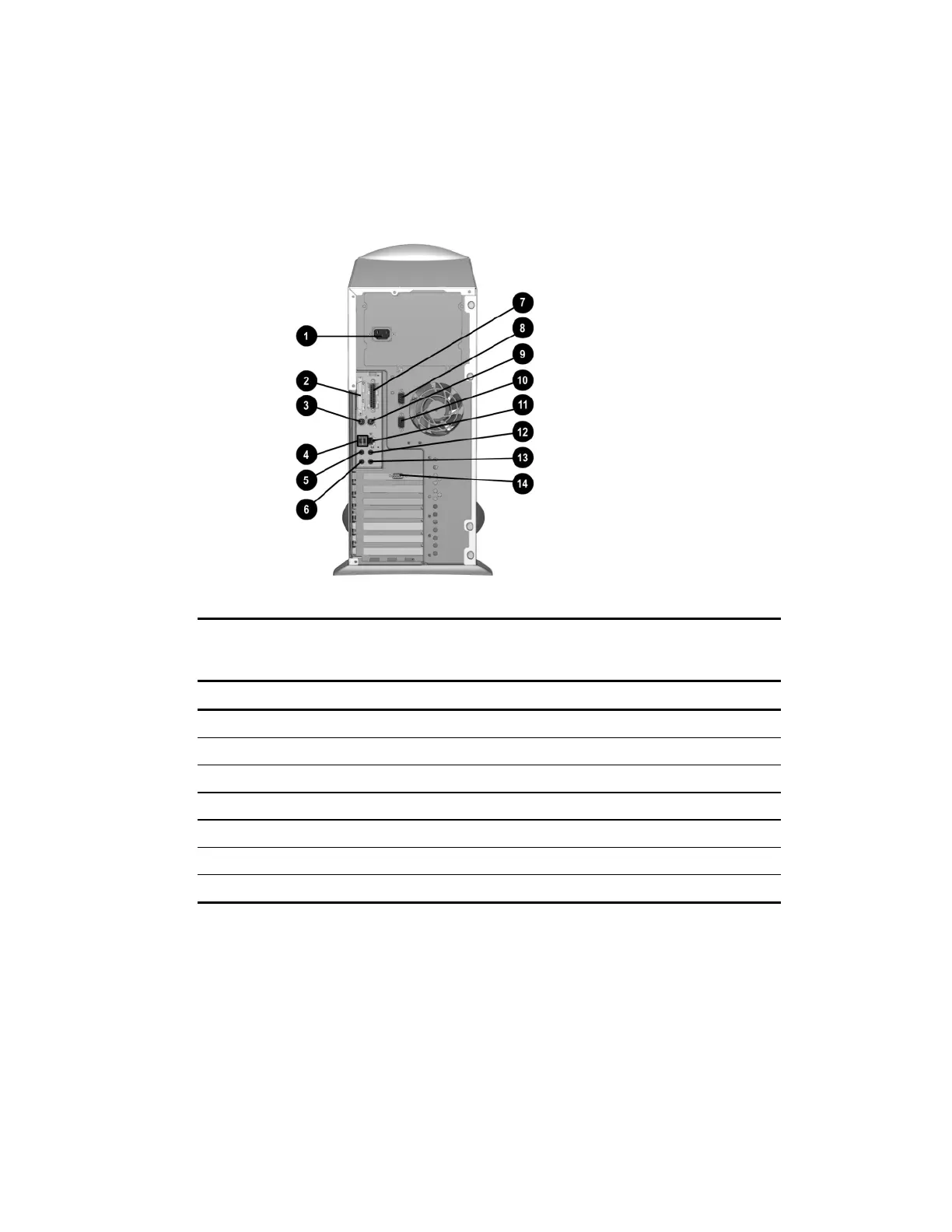

Figure 1-2. Identifying rear panel connectors
Table 1-2
Rear Panel Components
Item Component Item Component
1
Power cord connector
8
Serial connector B
2
Ultra3 SCSI connector
9
Mouse connector
3
Keyboard connector
-
Serial connector A
4
USB connectors (2)
;
RJ-45 connector
5
Audio line-out connector
<
Audio line-in connector
6
Headphone jack
=
Microphone jack
7
Parallel connector
>
VGA (AGP) connector
